Quick Disconnect & Manifold

Quick Disconnect & Manifold

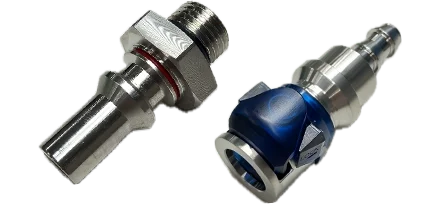

UQD&MQD

UQD Series &
MQD Series

Features
  • Support for the Latest High-performance GPU Cooling
  • Proven Track Record with Over 400,000 Units Shipped
  • Strict Quality Control via 100% Helium Leak Testing
  • Stable Supply and Flexible Production through Vertical Integration, Utilizing In-house Precision Machining Equipment
  • Automated Mass-production Lines in a Class 100 Cleanroom Environment

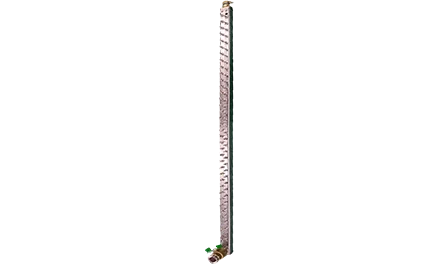

Manifold

Manifold

Features
  • Manifold Design Optimized for Seamless Integration with Our In-house Developed QDs
  • Strict Quality Control via 100% Helium Leak Testing
  • Mass Production Facilities Equipped with Class 100 Cleanroom

Nidec QD Strengths

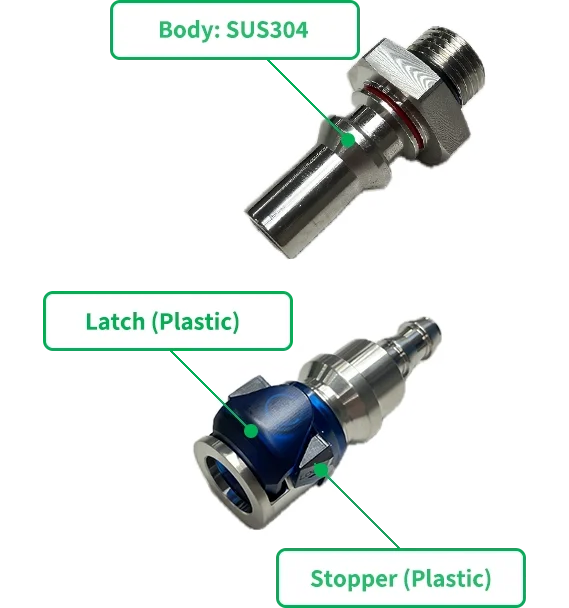

Quick Disconnect
Locking
mechanism to prevent accidental disconnection during maintenance
(Patent Pending)
Precision
metal processing and inspection technology,
leveraging through decades of HDD motor production
Consistent
quality control
from machining to assembly, powered by in-house precision machining from the
initial stages

Zero-leakage design for total fluid containment

Quick Disconnect
No1. Precision Metal Processing Technology

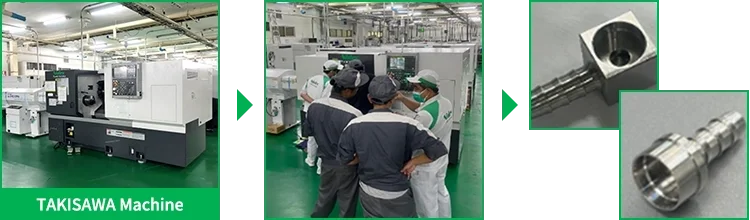

TAKISAWA製加工機
  • Deep knowledge of metal processing technologies
  • Creating processing machines optimized for QD
  • Flexible response to increased production
垂直統合体制図（TAKISAWAからNidecへ）

Nidec Quick Disconnect Lineup

Scroll horizontally
Series Picture Rotation Fitting type

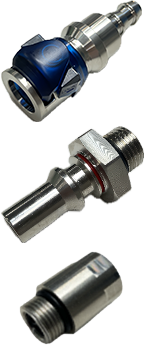

UQD
  • UQD02
  • UQD04
  • UQDB04
  • UQD06
  • UQDB06
  • UQD08
 UQD Rotatable
Non-Rotatable

Screw;
UQD02: UNF 7/16
UQD04: G3/8, UNF9/16(3/8 SAE)
UQDB04: G1/2, UNF3/4(1/2 SAE)
UQD08: G1/2

Tube fit: 2 or 3 bumps
UQD02: 1/4 inch(only 2 bumps)
UQD04: 3/8 inch
UQD08: 5/8 inch(only 3 bumps)
MQD
  • MQD02
  • MQD03
  • MQD04
 MQD Non-Rotatable

Screw;
MQD02: UNF 7/16
MQD03: G1/4, UNF7/16
MQDB04: G3/8

Tube fit: 2 or 3 bumps
MQD02: 1/4 inch(only 2 bumps)
MQD03: -
MQD04: 3/8 inch(only 3 bumps)
Tube fit 2 bumps
Tube fit 2 bumps
Tube fit 3 bumps
Tube fit 3 bumps
Lower OD after Tube installation
Rotatable Rotatable
Non-Rotatable Non-Rotatable
