Coolant Distribution Unit
In-Row CDU
In-Row CDU

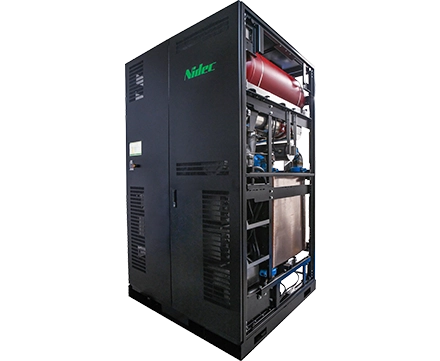

NIR 3.0
Features- Delivers a massive 3.2MW high-density cooling capacity engineered to support advanced AI infrastructure.
- Achieves superior heat-exchange efficiency with 3°C approach temperature at 3.2MW load.
- Maintains a robust grid system with THDi ≤5% to secure power supply stability
- Designed for 100% front-access serviceability to streamline maintenance of critical components
- Supports optional advanced monitoring with pH, conductivity, and turbidity sensors for real-time coolant quality control.
- Ensures future-proof power compatibility with an 800 VDC input option *1
- Group control capability for up to 10 CDUs
*1: Currently under evaluation
| NIR3.0 | |
|---|---|
| MODEL | NIR3.0 |
| Cooling Capacity | 3,200kW |
| Approach Temp | 3°C |
| 1st Loop Flow Rate | 5,100LPM |
| 2nd Loop Flow Rate | 4,800LPM |
| Weight | 2,200kg (Dry) / 2,800kg (Wet) |
| Dimension (WxDxH) | 1,450 × 1,300 × 2,340 mm |
| Input Power | 380-416VAC, 3 phase, 800VDC (Option) |
| 2nd Loop Filter | 25μm |
| Pump Redundancy | 2 |
| Communication Protocol | Modbus TCP, Redfish |
