Mechanical equipment / Machine Tools｜Factory automation (FA) equipment｜Wafer transfer robot (main unit)
SR9145 Series
NIDEC INSTRUMENTS CORPORATION

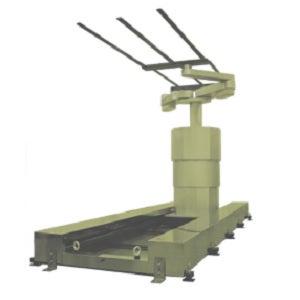

6 generation mother glass substrate transfer robot
- Contact information for product inquiry
- Contact Us
Product data
Basic information
| Operating range R axis | -1500～+1600mm |
|---|---|
| Operating range Z axis | Within 1725mm |
| Operating range θ axis | -140～+185° |
| Operating range Travel axis | Within 10700mm |
| Maximum speed R axis *1 | 1.92rad/sec |
| Maximum speed Z axis *1 | 700mm/sec |
| Maximum speed θ axis *1 | 2.18rad/sec |
| Maximum speed Travel axis *1 | 1500mm/sec |
| Repeat position accuracy | ±0.2mm |
| Maximum payload accuracy | 50kg/1Arm(Including robot hand) |
