Gear Hobbing Machine with Chamfering Unit GE25CF

The companies handling the product:Nidec Machine Tool Corporation

Contact information for product inquiry
Contact us

Hobbing Machine that Integrates Hobbing and Chamfering Processes to Help Automation and Reduce Labor of Gear Manufacturing

GE25CF

  • Max. workpiece diameter(mm)
    φ250
  • Max. module
    6

Features

Chamfering - with High Speed, Precision and Efficiency -

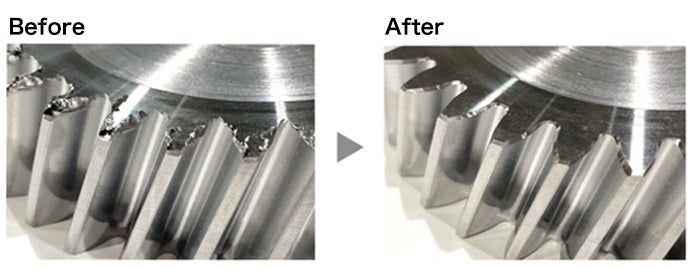

The GE25CF utilizes generating cutting with our special ChamferX cutting tools, eliminating burrs in the tooth flank and end face.

Using the Nidec cutting edge tool design simulation software, specific defined chamfering shapes are created including tooth root and complete edges up to 1mm or more.

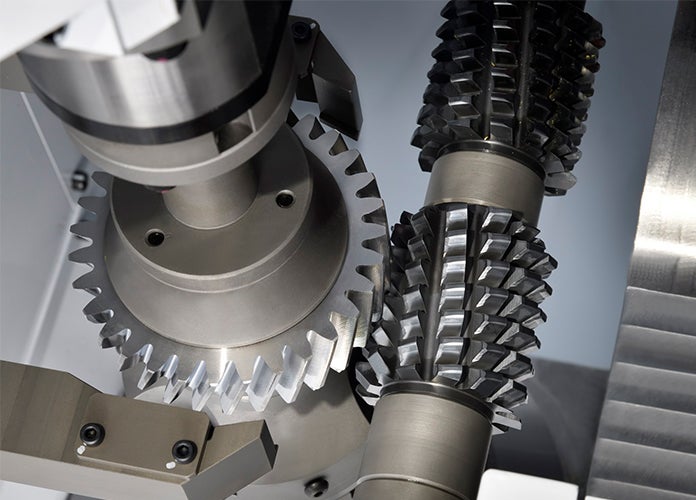

Special cutting tool ChamferX







Better operability

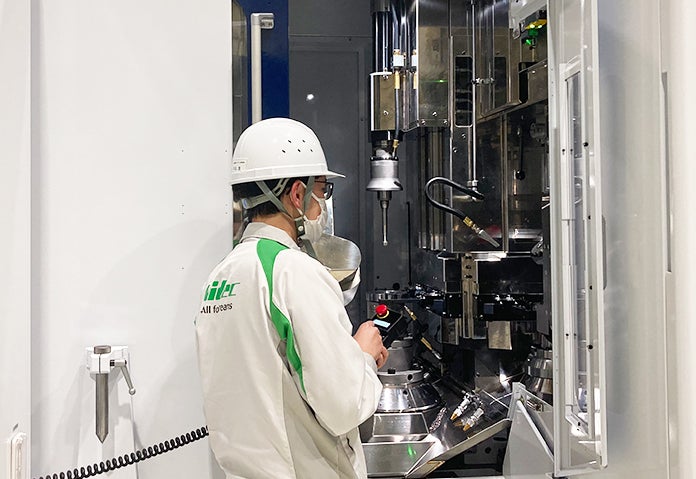

Cutting area for easy maintenance

With a wider opening to its front door, maintenance of the hob/chamfer cutter is possible from front side with 4ST ring loader and chamfering unit installed.

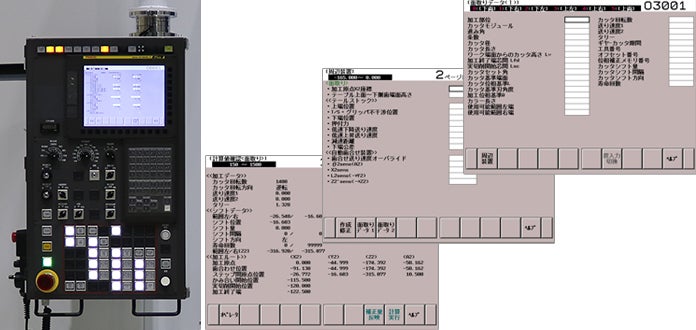

The operation screen is a large 10.4-inch screen

Simple input and help function available through graphical display screen
