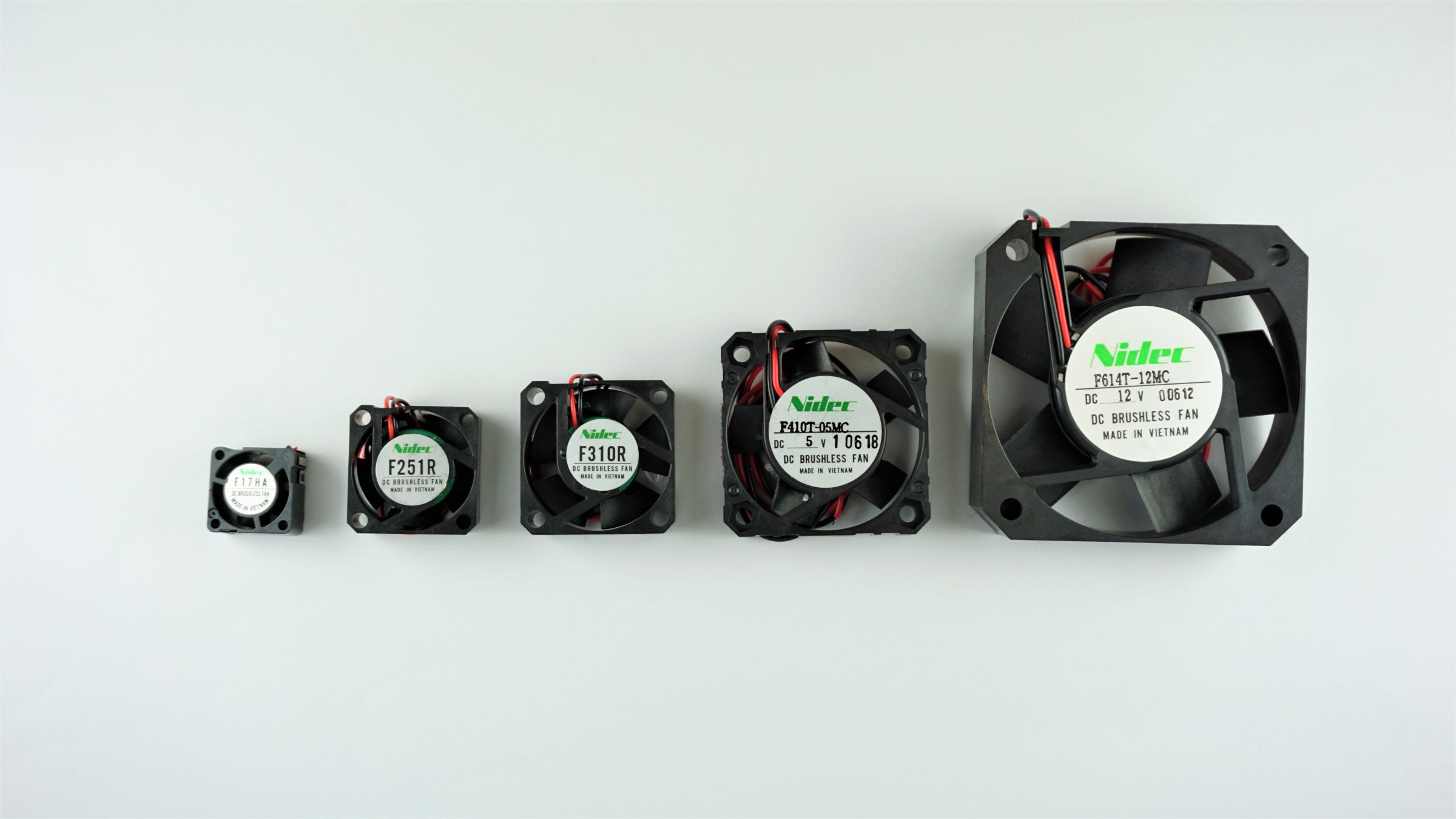

Fan motors
By uniquely devising the blade shape and frame structure, we have achieved ultra-compact size, quiet operation, low vibration, and high airflow. Our fan motors are incorporated into a wide range of products, including car navigation systems and video equipment.
＊For details, please inquire using the "Inquiry Form" below the list.＊
| Product Name | Size (mm) | Rated Voltage (V) | Rated Current (A) | Air Flow (㎡/min) | Static Pressure (Pa) | Noise dB(A) *Converted at 1m | Rotating Speed (rpm) | Net Weight (g) |
|---|---|---|---|---|---|---|---|---|
| F17FA-03MC Catalog | 17×17×5 | 3.3 | 0.06 | 0.01 | 6.6 | 5 | 7,000 | approx. 1.5 |
| F17HA-05MC Catalog | 17×17×8 | 5.0 | 0.03 | 0.015 | 11.0 | 7 | 8,000 | approx. 2.3 |
| F17HA-05HC Catalog | 17×17×8 | 5.0 | 0.06 | 0.018 | 17.0 | 12 | 11,000 | approx. 2.3 |
| F251R-05LC Catalog | 25 x 25 x 10 | 5.0 | 0.08 | 0.05 | 30.0 | 15 | 8,000 | approx. 7 |
| F251R-05LLC Catalog | 25 x 25 x 10 | 5.0 | 0.06 | 0.04 | 20.0 | 11 | 6,500 | approx. 7 |
| F251R-12LC Catalog | 25 x 25 x 10 | 12.0 | 0.05 | 0.05 | 30.0 | 15 | 8,000 | approx. 7 |
| F251R-05LB Catalog | 25 x 25 x 10 | 5.0 | 0.08 | 0.05 | 30.0 | 15 | 8,000 | approx. 7 |
| F251R-05LLB Catalog | 25 x 25 x 10 | 5.0 | 0.06 | 0.04 | 20.0 | 11 | 6,500 | approx. 7 |
| F251R-12LB Catalog | 25 x 25 x 10 | 12.0 | 0.05 | 0.05 | 30.0 | 15 | 8,000 | approx. 7 |
| F251R-12LLB Catalog | 25 x 25 x 10 | 12.0 | 0.04 | 0.04 | 20.0 | 11 | 6,500 | approx. 7 |
| F310R-05LC Catalog | 30 x 30 x 10 | 5.0 | 0.09 | 0.09 | 23.0 | 14 | 7,000 | approx. 8 |
| F310R-05LLC Catalog | 30 x 30 x 10 | 5.0 | 0.06 | 0.06 | 14.0 | 10 | 5,500 | approx. 8 |
| F310R-12LC Catalog | 30 x 30 x 10 | 12.0 | 0.05 | 0.09 | 23.0 | 14 | 7,000 | approx. 8 |
| F310R-12LLC Catalog | 30 x 30 x 10 | 12.0 | 0.04 | 0.06 | 14.0 | 10 | 5,500 | approx. 8 |
| F410T-05LC Catalog | 40 x 40 x 10 | 5.0 | 0.08 | 0.11 | 10.0 | 12 | 4,600 | approx. 14 |
| F410T-05MC Catalog | 40 x 40 x 10 | 5.0 | 0.12 | 0.15 | 23.0 | 18 | 5,800 | approx. 14 |
| F410T-12LC Catalog | 40 x 40 x 10 | 12.0 | 0.04 | 0.11 | 10.0 | 12 | 4,600 | approx. 14 |
| F410T-12MC Catalog | 40 x 40 x 10 | 12.0 | 0.06 | 0.15 | 23.0 | 18 | 5,800 | approx. 14 |
| F412R-05LB Catalog | 41 x 41 x 12 | 5.0 | 0.08 | 0.11 | 15.0 | 16 | 4,200 | approx. 20 |
| F412R-05MB Catalog | 41 x 41 x 12 | 5.0 | 0.10 | 0.15 | 26.0 | 23 | 5,400 | approx. 20 |
| F412R-12LB Catalog | 41 x 41 x 12 | 12.0 | 0.04 | 0.11 | 15.0 | 16 | 4,200 | approx. 20 |
| F412R-12MB Catalog | 41 x 41 x 12 | 12.0 | 0.06 | 0.15 | 26.0 | 23 | 5,400 | approx. 20 |
| F614T-05MC Catalog | 62×62×14.5 | 5.0 | 0.10 | 0.36 | 20.0 | 23 | 2,900 | approx. 40 |
| F614T-12MC Catalog | 62×62×14.5 | 12.0 | 0.06 | 0.36 | 20.0 | 23 | 2,900 | approx. 40 |
*Note: The above specifications are typical values measured under the following conditions: No-load running with rated voltage, at a temperature of 25°C ± 2°C, and a relative humidity ranging from 35% to 85% RH.
