MightyShieldΣ - An all-purpose coating that protects the cutting edge.
Characteristics
- Achieves long life by employing high hardness film (HV4000) with excellent heat resistance.
- Supports a wide range of processing areas (HSS hobs, carbide hobs)
- Demonstrates performance in any cutting environment, dry or wet.

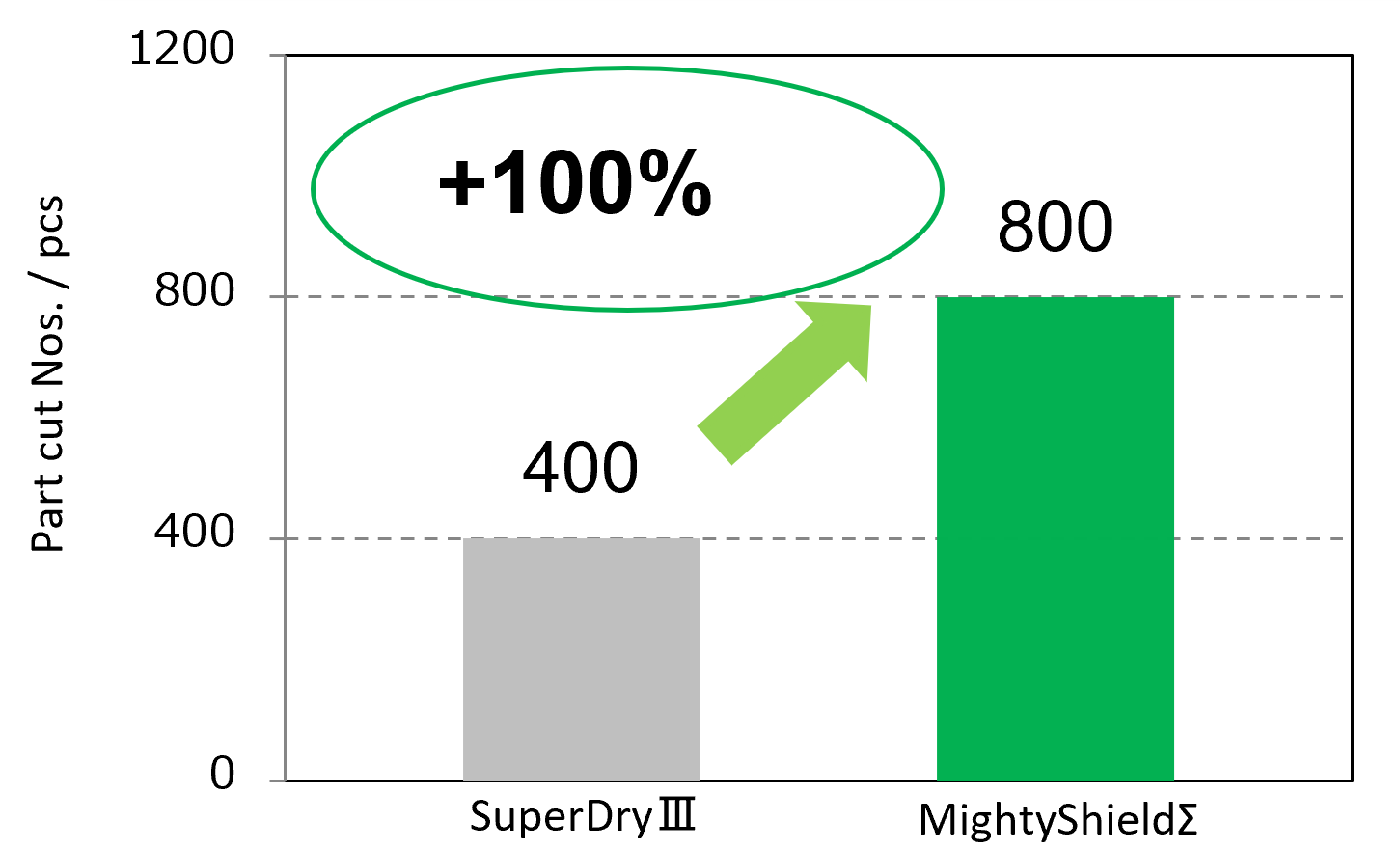

Cutting result 1. Final gear hobbing cut
【Part Dimensions】
Module 3.0 PA20
NT51 HELIX 30
MATERIAL SCM420
【Hob Dimensions】
3 starts 16 flutes
Hob material MACH11 (HSS)
【Cutting Condition】
Cutting speed 170m/min
Ax. Feed 2.2mm/rev
Water soluble coolant

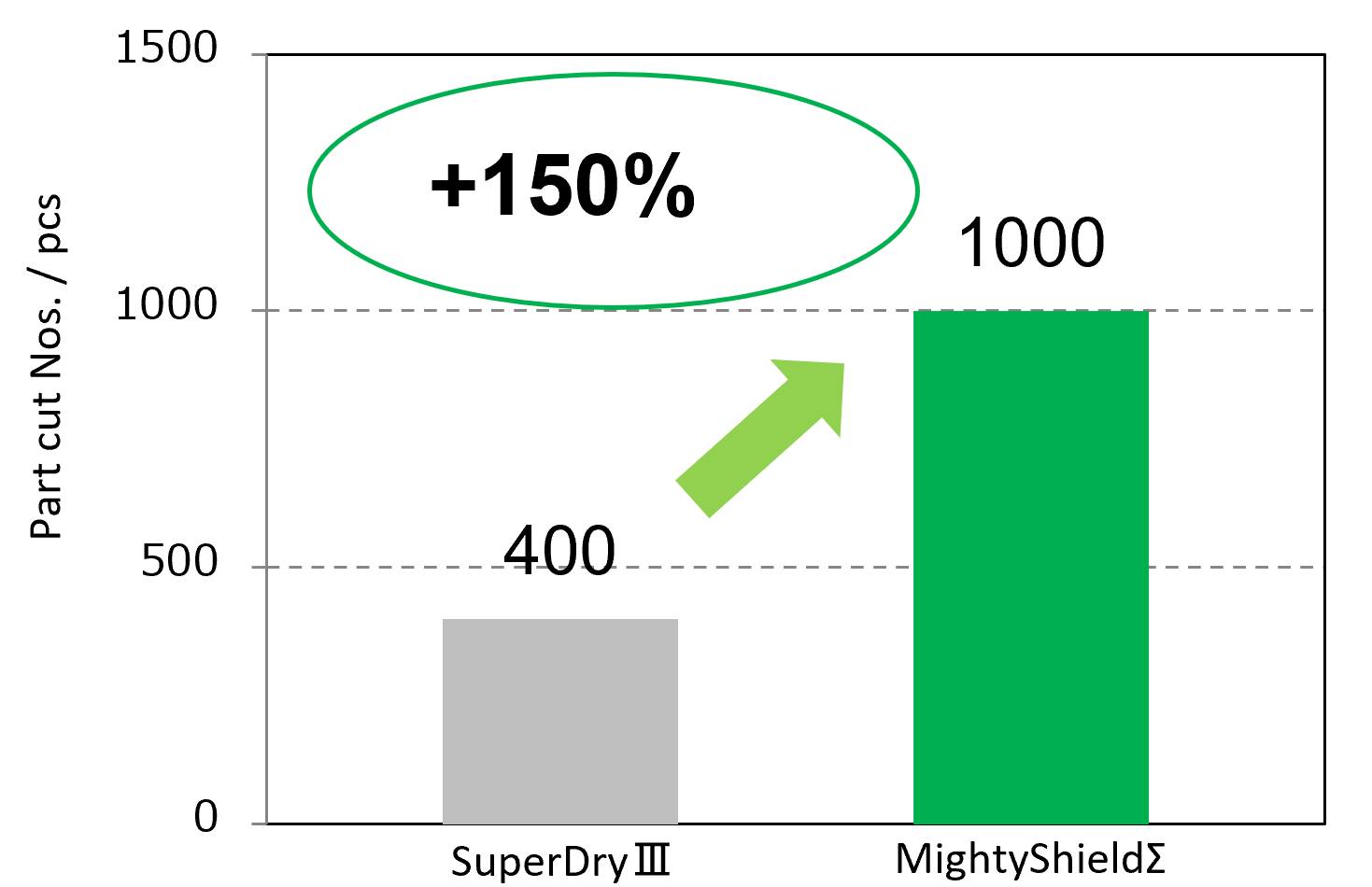

Cutting result 2. Counter gear hobbing cut
【Part Dimensions】
Module 2.1 PA14.5
NT50 HELIX 30
MATERIAL SCM420
【Hob Dimensions】
3 starts 16 flutes
Hob material MACH11 (HSS)
【Cutting Condition】
Cutting speed 170m/min
Ax. Feed 2.3mm/rev
Water soluble coolant
