Up-Down counter with arithmetic function (2-step preset output) DT-601CG
Handling company: NIDEC DRIVE TECHNOLOGY CORPORATION
Up-Down counter with arithmetic function
Equipped with a drip-proof front panel (equivalent to IP66), this device can be used in food or medical products lines.
- Features:
- Free power supply of AC85 to 264V. Also supports DC12 to 24V. (available upon request at time of order) / 90° phase difference input / BCD output (The analog output and line receiver are optional) / Complies with the RoHS directive. Complies with the regulation that restricts the use of certain hazardous substances in electrical and electronic equipment.

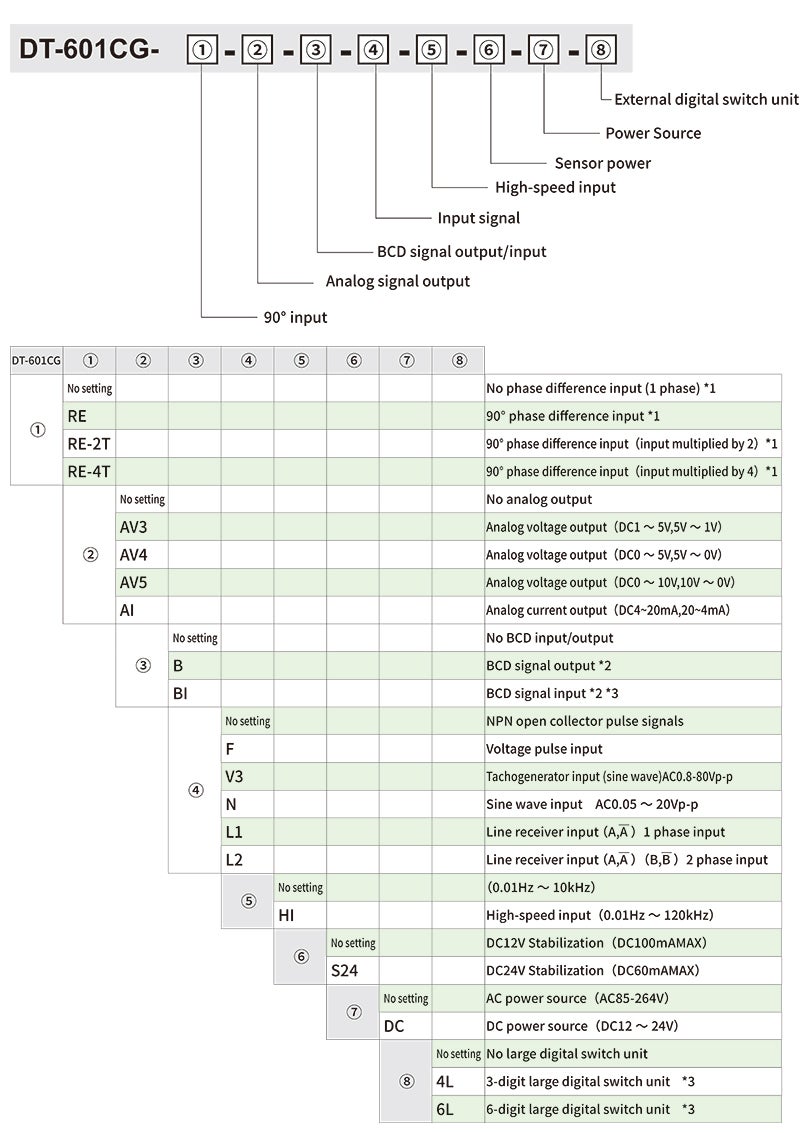

*1：Select the dual phase input for a 2-phase encoder. Bidirectional counting
using an encoder is not possible with a single phase input model.
*2：Option B and BI cannot be selected at the same time.
*3：BI option is required for large digital switch unit.
Model with 4-digit large digital switch unit; DT-601CG-□-BI-□-4L
Product data
Basic information
| Model | DT-601CG |
|---|---|
| Remarks | Please refer to catalog below for the details. |
| ＊ | Be sure to read the information below for document when considering DT-601CG over DT-6CG, or when replacing the model. |
