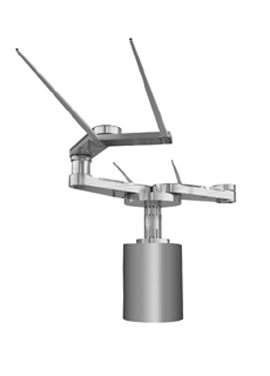

Mechanical equipment / Machine Tools｜Factory automation (FA) equipment｜Liquid crystal glass transfer robot (main unit)
SR8651
NIDEC INSTRUMENTS CORPORATION
- characteristics:
- ・Different type of end effectors to meet different temperature requirements.・Module structure drive units or easy maintenance.・Ability to access up to three-layer Load Lock with long Z-stroke.・Small and lightweight controllers with common structure for easy maintenance.・Sankyo's original cooling system to meet high temperature requirement.・Easy to separate R-axis unit from Mainpulator for simple maintenance and installation.・Seramic hands available to meet high moment.・High-precision parts and hybrid bekts used for arm drive units.
- Contact information for product inquiry
- Contact Us
Product data
Basic information
| Vacocum-resistance level | 1.33×10-2 |
|---|---|
| Degree of freedom | 5-AXIS(all AC-servo controlled) |
| Working range「RR/RL AXIS」(㎜) | 2400 |
| Working range「Z AXIS」(㎜) | 250/450 |
| Working range「θ AXIS」(deg) | +140～-185 |
| Maximum speed「RR/RL AXIS」(㎜/sec) | 3370 |
| Maximum speed「Z AXIS」(㎜/s) | 300 |
| Maximum speed「θ AXIS」(rads/s) | 2.09 |
| Maximum speed「Repeatability」(㎜) | +/-0.2 |
| Maximum speed「Noise generation」 | 80 or less |
| Maximum speed「Glass size」(㎜) | Solar：1100×1300 t=4～5/LCD：～1500×1850 t=0.5～1.1 |
| Handling Company | NIDEC SANKYO |
