Automotive|Powertrain|Hydraulic solenoid electromagnetic valve

Linear Solenoid(For diesel fuel control)

companies handling the product:NIDEC POWERTRAIN SYSTEMS CORPORATION

Realize high accuracy and low leakage

Global emissions regulations are being tightened and fuel efficiency is being sought. This product contributes to low fuel consumption by high precision fuel flow control and low leak.

Contact information for product inquiry
Contact Us

Product data

Basic information

Solenoid type 2way flow control linear Solenoid (Normally Open type)
Size Electromagnetic part; φ35 × 40, pressure regulator; φ22 × 24
Usage environment In the air (Mounting on engine)
Control oil Diesel fuel
Oil temperature range -30 – 145℃
Voltage range 9-16V (rated 10.5V)
Current range 0 – 1.3A
Coil resistance 5.3Ω at 20℃
Connector 2 pin
Input
Inlet oil pressure 600kPa
Output
Control flow rate -0 - 2.2L/min at Δ50kPa
Leakage -Max 0.003L/min at 600kPa

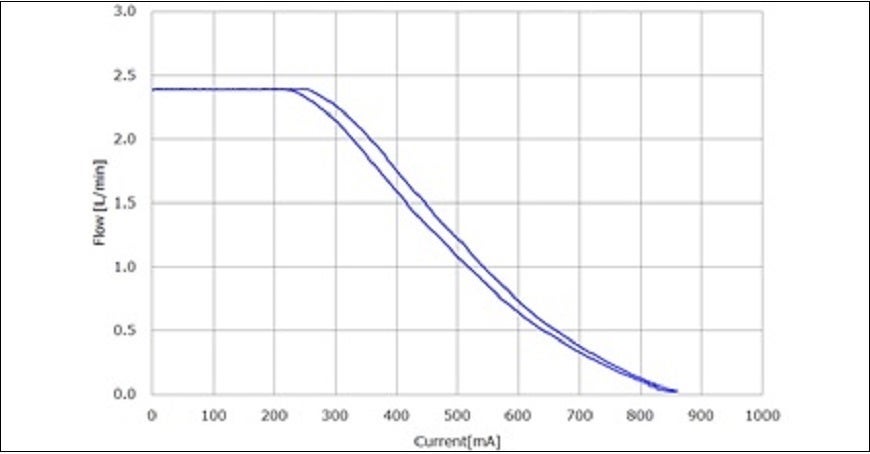

Characteristics graph

Drawing
