Automotive|Powertrain|Hydraulic solenoid electromagnetic valve

Duty Solenoid

companies handling the product:NIDEC POWERTRAIN SYSTEMS CORPORATION

Realize space saving and high accuracy

Realizes linearity hydraulic characteristics with high accuracy and small size based on ON / OFF valve. In addition, at the mounted on T/M, it is the structure which can improve soundproofness by adding anti-vibration rubber.

Contact information for product inquiry
Contact Us

Product data

Basic information

Solenoid type 3way pressure control duty Solenoid (Normally Closed type)
Size Electromagnetic part; φ21 × 22, pressure regulator; φ18 × 22
Usage environment In oil (Mounting in oil pan)
Control oil ATF
Oil temperature range -30 – 165℃
Voltage range 10-16V (rated 13.5V)
Coil resistance 12.1Ω at 20℃
Connector 2 pin
Input
Inlet oil pressure 500kPa
Output
Control pressure 0 – 500 kPa

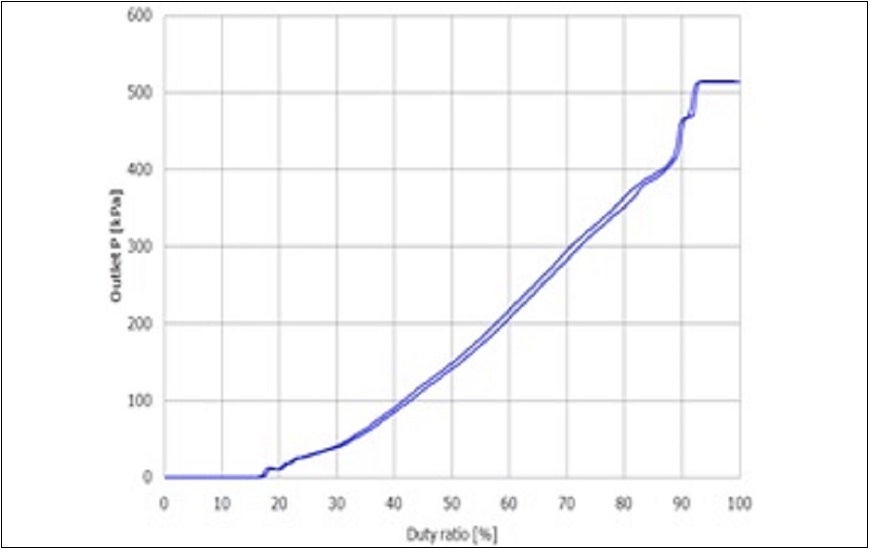

Characteristics graph

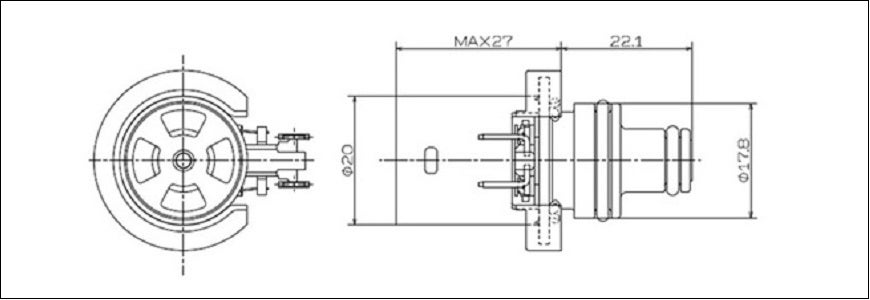

Drawing
