Automotive|Powertrain|Hydraulic solenoid electromagnetic valve

Linear Solenoid

companies handling the product:NIDEC POWERTRAIN SYSTEMS CORPORATION

Realize high responsibility and low cost

Cost reduction is achieved by sharing the electromagnetic parts (TOSOK series parts). In addition, in terms of performance, high response (A → T) is achieved by adopting double SPRING.

Contact information for product inquiry
Contact Us

Product data

Basic information

Solenoid type 3way flow control linear Solenoid (Normally Open type)
Size Electromagnetic part; φ27 × 36, pressure regulator; φ16 × 45
Usage environment In oil
Control oil Engine Oil
Oil temperature range -40 – 150℃
Voltage range 8-16V (rated 12V)
Current range 0 – 1.0A
Coil resistance 5.3Ω at 20℃
Connector 2 pin
Input
Inlet oil pressure 50kPa
Output
Control flow rate -A⇒T; 0 - 2L/min, P⇒A; 0 - 1L/min

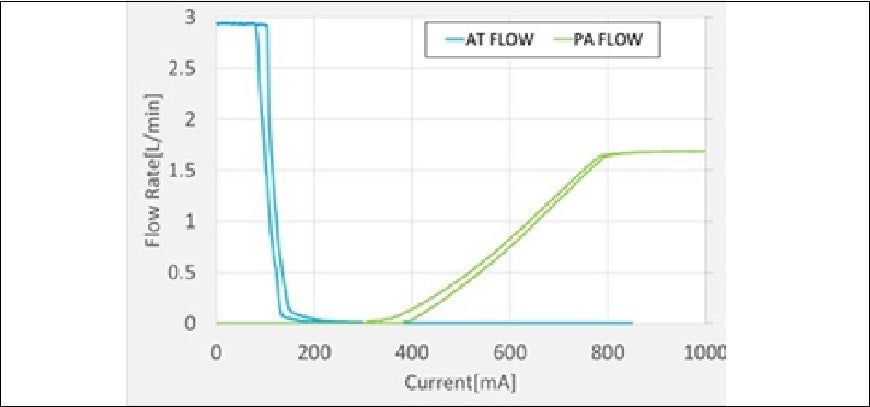

Characteristics graph

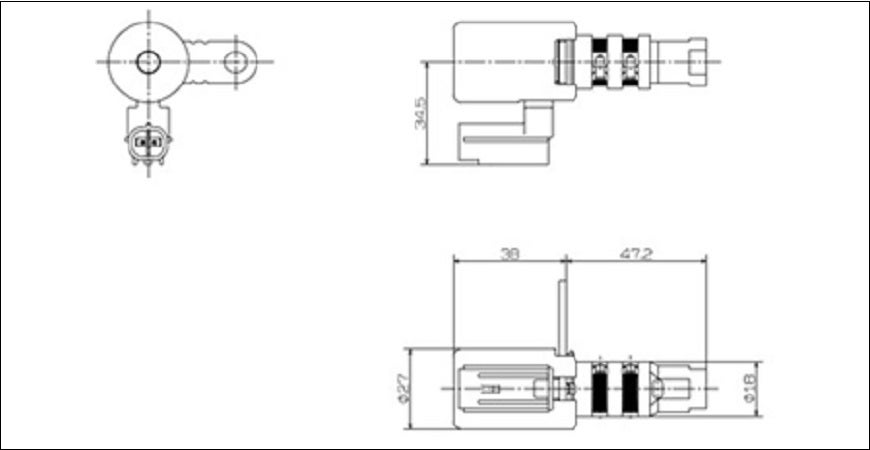

Drawing
