Automotive|Powertrain|Hydraulic solenoid electromagnetic valve

ON/OFF Solenoid

companies handling the product:NIDEC POWERTRAIN SYSTEMS CORPORATION

Realize space saving and high accuracy

Small size and low cost structure realized by resin NOZZLE structure and Ball valve structure. In addition, it becomes body earth structure by BRACKET due to 1 pole terminal.

Contact information for product inquiry
Contact Us

Product data

Basic information

Solenoid type 3way pressure control ON/OFF Solenoid (Normally Closed type)
Size Electromagnetic part; φ24 × 31, pressure regulator; φ18 × 19
Usage environment In oil (Mounting in oil pan)
Control oil ATF
Oil temperature range -40 – 140℃
Voltage range 9-16V (rated 13.5V)
Coil resistance 16Ω at 20℃
Connector 1 pin
Input
Inlet oil pressure 690 kPa
Output
Control pressure 0-690 kPa

Characteristics graph

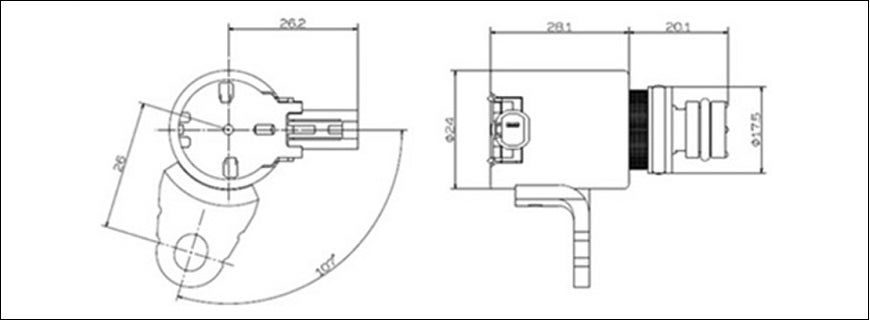

Drawing
