Other products｜Pottery Product ＆ Equipment｜Pugmills
NVA-04S
Handling company: NIDEC DRIVE TECHNOLOGY CORPORATION
No need for spiral wedging by using vacuum type
- Features:
- The NVA-04S pugmill features newly designed twin augers and a forceful direct gear driven motor for remarkable extruding capability that produces air-free clay and increases clay workability. It features an all-stainless interior for use with porcelain and other light colored clay bodies. The high quality wedging and extruding capacity obtained makes this compact pugmill one of the most efficient and competitive on the market.
- Contact information for product inquiry
- Contact us
De-Airing Pugmill
 | |
| High-quality design using stainless steel for main body and screws ＞Rust resistant ＞Available for porcelain clay Established superior wedging / de-airing function and extruding capacity Easy access to interior for maintenance | ・Compact design ・Dual safety system ・High de-airing capacity ・High extruding capacity ・High quality wedging function |
Product data
Specifications
| Model | NVA-04S |

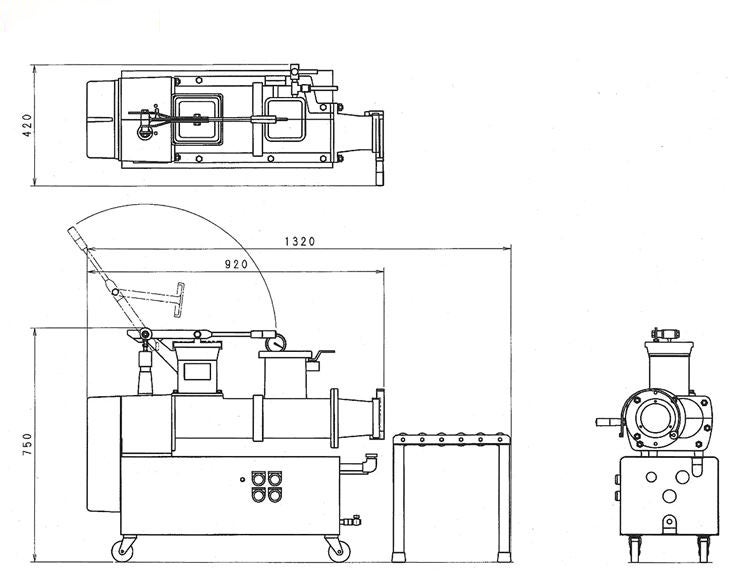

| Dimensions | 920 (1,320 including clay roller stand)×420×750 mm |
| Weight | Main body; 140kg Clay roller stand; 5 kg |
| Main motor | Single phase 230V 400W |
| Vacuum pump motor | Single phase 230V 200W |
| Extruding capacity | 200kg/hour |

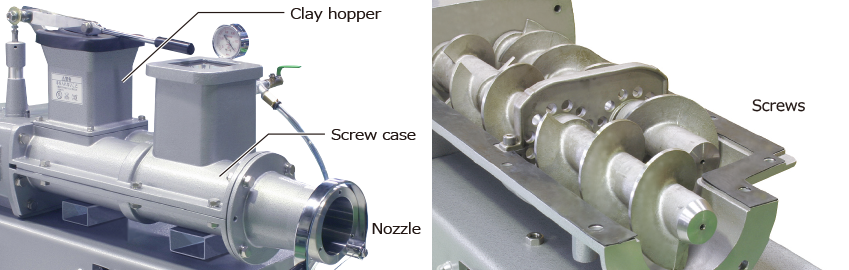

| Screw horizontal | Clay hopper; two shafts Nozzle opening; 1 shaft |
| Extruding diameter | Dia. 90mm |
| Note | Stainless steel is used for clay hopper, nozzle, clay wedging shelf, screw and screw case. |
| Caution | Please read the entire instruction manual thoroughly before initial set-up and operation; the information contained here in will aid you in operating your Nidec DriveTechnology wheel safety and with excellent results. |
