Product Details

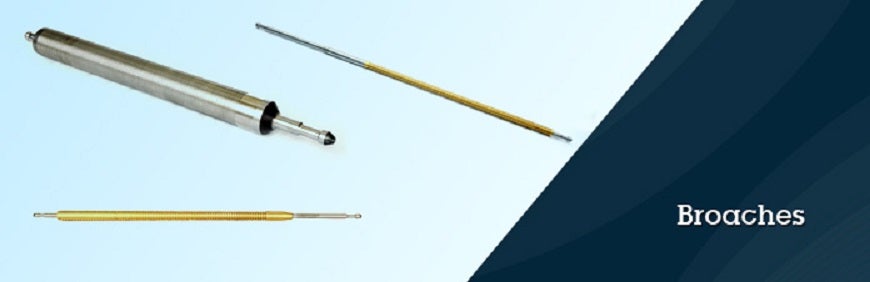

Broach
- Broaches are made to suit component specifications, customer's machine and holder details.
- Different internal profiles are undertaken for manufacture of -
Splines-Involute, parallel and trapezoida
l Serrations
Round
Rectangular
Ratchet, etc. - Different types of broaches are supplied -
Burnishing for round holes
Only spline
Plain combination round and spline
Interspaced round and spline
Full form Gear Broaches - Pull end /Rear end details
Sleeve type as per DIN 1415 or DIN 1417 Standard
Cotter type
Any other type to suit the customers' holder details - Equipped to manufacture and supply Surface Broaches for plain and curved profiles
- Different types of Keyway Broaches are supplied -
With / without chamfer
With / without shoulder - Set of Broaches for machining of connecting rods
ROUND & SPLINE BROACH | |
---|---|
PARAMETER | LIMITATION / RANGE |
Diameter | 15 to 200mm |
Profile Type | Involute, Straight-sided, Serration, special profile |
Length | 2055mm MAX |
KEYWAY BROACH | |
---|---|
PARAMETER | LIMITATION / RANGE |
Key Width | MIN 2.5MM MAX 150MM |
Guide Width | MIN 3.00 MM MAX 150MM |
Over All Length | UP TO 2000 MM |
