Product Details

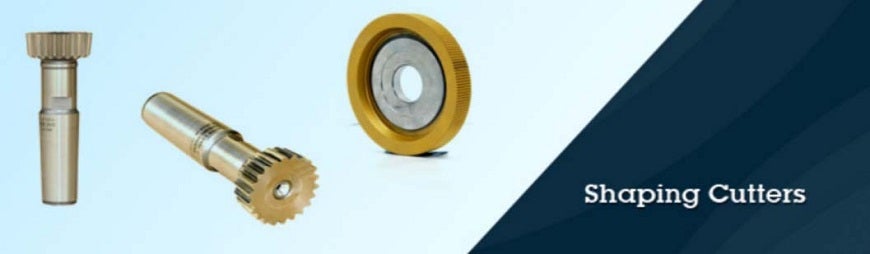

Shaping Cutters
- Module, DP and CP series Shaper Cutters are supplied by NIDEC-IPT
- Various forms of Shaper cutters such as non-topping, semi-topping, topping, finishing, roughing, pre-shaving or pre-grinding, with or without protuberance, etc., are manufactured
- Both spur type and helical type Gear Shaping cutters are made
- Designing and Production of relief ground Shaping cutters for involute splines, worms (cutter to be used in hobbing machine by kinematics inversion process) and relief machined cutters for sprocket, parallel sided splines etc., are done at NIDEC-IPT
- The range of Shaping cutters available at NIDEC-IPT includes different varieties of disc type, hub type and shank type. Tandem Shaping cutters are also supplied
SHAPING CUTTER | |
---|---|
PARAMETER | LIMITATION / RANGE |
Module | 0.75 To 12 |
PCD | 12.7 To 200mm |
Bore Diamete | 12.7,16,19.05,22,25.4,31.75,32,44,45,58.7375,63.5,70,88.9,101.6MM |
Helix angle | AISI M2 |
Helix Angle | Up to 40 deg RH & LH |
Shank Type | QAL upto 160mm |
