Product Details

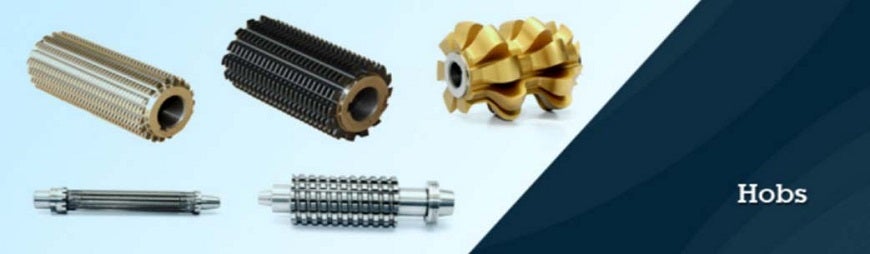

Gear Hobs
- Module,DP and CP series Hobs are supplied by NIDEC-IPT.
- Various forms of Hobs such as non-topping, semi-topping, topping, finishing, roughing, pre-shaving or pre-grinding, with or without protuberance, tip relief, full fillet radius etc., are manufactured.
- Multi start Hobs, Multi gash Hobs and Drycut Hobs are also supplied.
- Designing & Production of Gear Hobs-both involute and parallel sided, Sprocket Hobs, Worm Wheel Hobs, Serration Hobs, Timing Belt Pulley Hobs and Ratchet Hobs are done at NIDEC-IPT.
- Both bore type and shank type Hobs are made.
HOBBING CUTTER | |
---|---|
PARAMETER | LIMITATION / RANGE |
Module | 24 To 250mm |
Outside Diameter | 24 To 250mm |
Overall Length | 300mm Max or 35 Pitches max whichever is less0 |
Starts | Upto SIX |
Accuracy | Class AA of DIN3968 |
Class A of BS2062 | |
Class A of ASA B94-7-1966 | |
Class AA, A, B & C of JIS4355-1998 | |
Lead Angle UP To 15 deg | |
6mm To 38.1mm |
