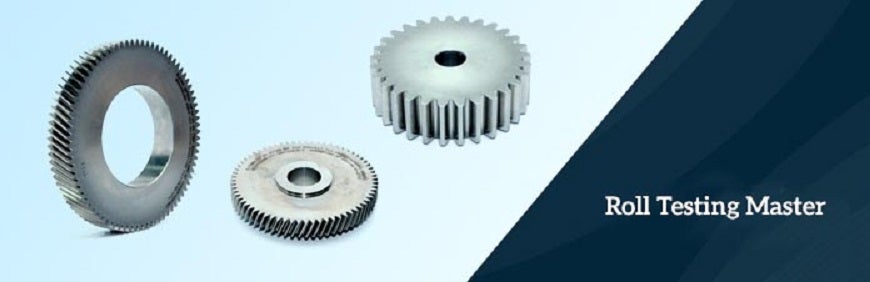

Roll Testing Master

  1. It is used on double flank Roll-Testing machine to confirm the Gear accuracy
  2. To improve the life of Roll Testing Master, we manufacture the same out of HSS material and hardness is maintained above 63 HRc
  3. We can manufacture Roll Testing Master in Quality Class 4 & 5 of DIN 3962
  4. We can also manufacture Taper Bore and OBD Roll Testing Master.
ROLL TESTING MASTER
PARAMETER LIMITATION / RANGE
Module 0.8 TO 6
PCD 10 to 200mm
Accuracy Class 4 of DIN3962
Material AISI M2
Helix Angle Up to 40 deg RH & LH
