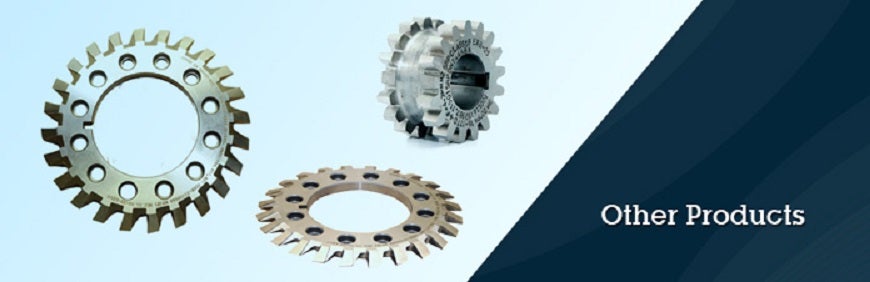

Other Products

Rotary Cutter For Straight Bevel Gears

1.

   Cutters are supplied in pairs

2.

   At present, we supply cutters made out of High Speed Steels of Grade M2
   l(conventional) or ASP 2023 (powder material)

3.

   These cutters have 9" diameter, 4.5" bore and 0.5" thickness

Rack Milling Cutters (Ground Form)

1.

   This cutter is used to produce racks

2.

   We can supply either with straight gash or helical gash

3.

   We can supply cutters upto diameters 280mm & Overall length 300mm

4.

   Cutters are offered in various High Speed Steel of Grades like AISI
   M35(conventional),ASP 2030 & ASP 2052(Powder materials)

Swaging Cutters

1.

   These cutters are used to produce taper flanks in external splines or internal splines

2.

   Most of the synchromesh gear boxes require taper splines which are formed by this process.

3.

   Extenal splines are produced by hobbing or shaping process. Then, these swaging cutters are used on special purpose machines to obtain taper flanks

4.

   Internal splines are produced by broaching or shaping process. Then these swaging cutters are used on a special purpose machines to get taper splines

Chamfering Cutters

1.

   These cutters are used to produce chamfers along involute profile of gears at end faces

2.

   Normally, it is used after gear cutting by hobbing or shaping process

3.

   Cutters are supplied in pairs and to suit gear profile

Deburring Cutters

1.

   These cutters are used on gear chamfering machines to deburr while chamfering operation is carried out/li>
