Product Details

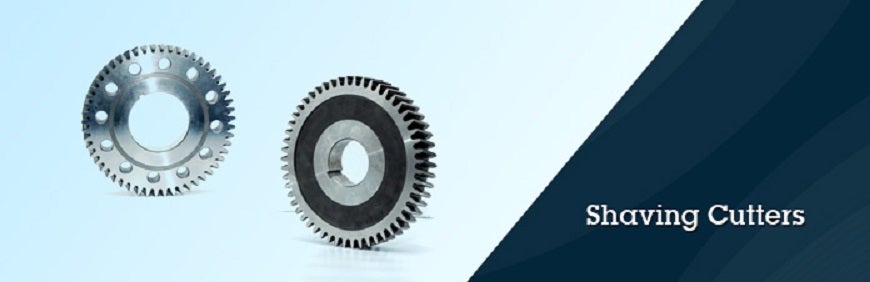

Gear Shaving Cutters
- Manufacturing of various types of Shaving cutters such as conventional, diagonal, under-pass and plunge-cut are undertaken
- Special profiles are incorporated on the Cutter to generate tip relief, profile crowning, lead crowning, etc., on component
- The Shaving machine at NIDEC-IPT tries out the Shaving cutter manufactured here, to confirm the profile accuracy. This is done at extra cost with necessary mandrels, component blanks, etc., supplied by the customer
- Pre-shaved tools like Hobs/Shaping cutters along with Shaving cutters can be supplied from a single source - NIDEC-IPT. Hence, design parameters can be worked out to achieve optimum results on the components
- Gear Shaving cutters made out of superior HSS Grades can be supplied.
- Re-sharpening of NIDEC-IPT make cutters as well as imported cutters are carried out. Customers have to furnish the re-sharpening chart along with other make and imported cutters.
SHAVING CUTTER | |
---|---|
PARAMETER | LIMITATION / RANGE |
Module | 1.25 TO 14 |
PCD | 150mm TO 350mm |
Cutter Width | Up to 60mm |
Helix angle | Up to 40 deg RH & LH |
Cutter Width in mm: Minimum 16 and Maximum 50.8
Bore in mm: 44.45 or 63.5 or 100
*Not Prime Check up with Gear NT before selecting
