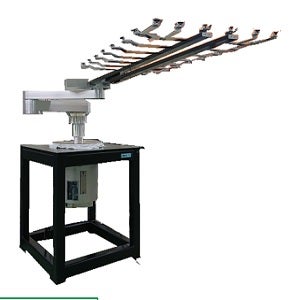

SR8651 Series

NIDEC INSTRUMENTS CORPORATION

4.5 to 6 generation mother glass substrate transfer robot

characteristics:
Arm drive system. Realization of minimum turning radius
Contact information for product inquiry
Contact Us

Product data

Basic information

Degree of vacuum 1.3×10-5 Pa or less
Operating range R axis -565~+565mm
Operating Z axis Within 820mm
Operating range θ axis -185~+140°
Maximum speed R axis *1 1.22rad/sec
Maximum speed Z axis *1 350mm/sec
Maximum speed θ axis *1 2.09rad/sec
Repeat position accuracy ±0.2mm
Maximum payload accuracy 65kg/1Arm(Including robot hand)
*1:Representative value
