SR9183 Series

NIDEC INSTRUMENTS CORPORATION

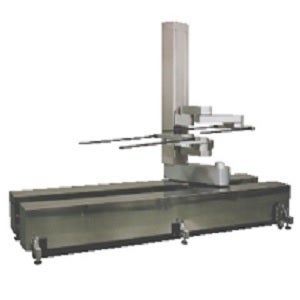

4.5 generation mother glass substrate transfer robot

characteristics:
・FO-PLP compatible model ・For EFEM (compatible with multi-stage equipment)
Contact information for product inquiry
Contact Us

Product data

Basic information

Operating range R axis -1190~+1190mm
Operating range Z axis Within 2400mm
Operating range θ axis -140~+185°
Operating range Travel axis Within 11700mm
Maximum speed R axis *1 3.32rad/sec
Maximum speed Z axis *1 900mm/sec
Maximum speed θ axis *1 2.4rad/sec
Maximum speed Travel axis *1 3000mm/sec
Repeat position accuracy ±0.2mm
Maximum payload accuracy 15kg/1Arm(Including robot hand)
*1:Representative value
