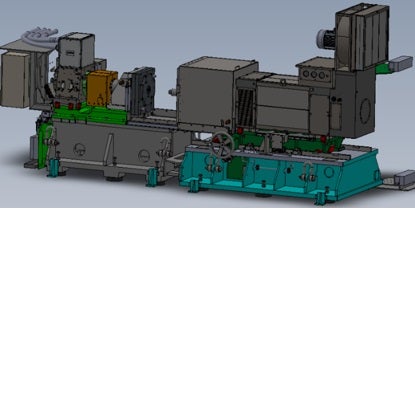

2-axis test bench for evaluating internal gear performance of the traction motor system “E-Axle” for EV
TDAS-2361P
Company：NIDEC ADVANCE TECHNOLOGY CORPORATION
2-axis test bench for evaluating internal gear performance of the traction motor system “E-Axle” for EV
The TDAS-2361P is a high-performance test bench designed to evaluate the performance, reliability, and durability of E-Axle gear systems. Its most notable feature is functioning as an "ultra-high-speed 2-axis gear test bench," with the input side capable of supporting a maximum rotational speed of 30,000 rpm.
■ Input Side Specifications
Rated Power: 170 kW
Rated Torque: 180 Nm
Maximum Rotational Speed: 30,000 rpm
■ Output Side Specifications
Rated Power: 180 kW
Rated Torque: 3,850 Nm
Maximum Rotational Speed: 1,500 rpm
