3D scanner / 3D digitizer
RVL6540
Company：NIDEC POWERTRAIN SYSTEMS CORPORATION
Because of its preciseness based on JSB7441, it is used in various fields such as jewellery, figure businesses. Operation can be performed by setting the products on the equipped stage. It automatically scans the object, finds the right place and proceeds STL data very quickly.
Product's data
Basic information
Maximum permissible error | ±20µm |
|---|---|
Repeatability | 10µm |
Measurement range | Φ170 , height 40mm or Φ140 , height 110mm of cylindrical shape range |
Minimum dot data space | 0.02mm |
Data processing time from scanning to STL data output | approximately 10mins |
Maximum permissible error | ±20µm | Repeatability | 10µm |
|---|---|---|---|
Measurement range | Φ170 , height 40mm or Φ140 , height 110mm of cylindrical shape range | Minimum dot data space | 0.02mm |
Data processing time from scanning to STL data output | approximately 10mins |

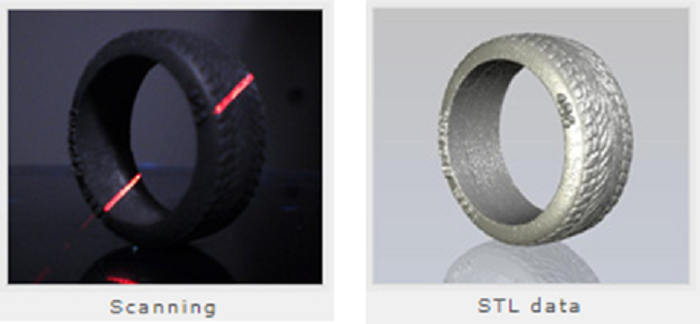

Measurement Image
