Hydraulic solenoid electromagnetic valve
Linear Solenoid
Company：NIDEC POWERTRAIN SYSTEMS CORPORATION
Realize high responsibility and low cost
Cost reduction is achieved by sharing the electromagnetic parts (TOSOK series parts). In addition, in terms of performance, high response (A → T) is achieved by adopting double SPRING.
Product's data
Basic information
Solenoid type | 3way flow control linear Solenoid (Normally Open type) |
|---|---|
Size | Electromagnetic part; φ27 × 36, pressure regulator; φ16 × 45 |
Usage environment | In oil |
Control oil | Engine Oil |
Oil temperature range | -40 ? 150℃ |
Voltage range | 8-16V (rated 12V) |
Current range | 0 ? 1.0A |
Coil resistance | 5.3Ω at 20℃ |
Connector | 2 pin |
Solenoid type | 3way flow control linear Solenoid (Normally Open type) | Size | Electromagnetic part; φ27 × 36, pressure regulator; φ16 × 45 |
|---|---|---|---|
Usage environment | In oil | Control oil | Engine Oil |
Oil temperature range | -40 ? 150℃ | Voltage range | 8-16V (rated 12V) |
Current range | 0 ? 1.0A | Coil resistance | 5.3Ω at 20℃ |
Connector | 2 pin |
Input
Inlet oil pressure | 50kPa |
|---|
Inlet oil pressure | 50kPa |
|---|
Output
Control flow rate | - (A⇒T; 0 - 2L/min, P⇒A; 0 - 1L/min) |
|---|
Control flow rate | - (A⇒T; 0 - 2L/min, P⇒A; 0 - 1L/min) |
|---|
Characteristic Graph

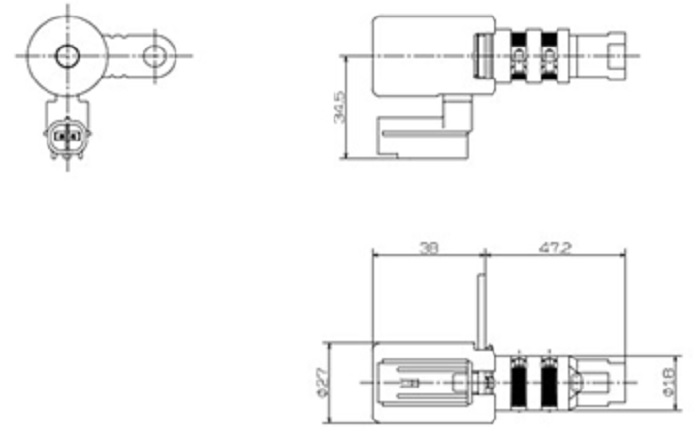

Drawings
