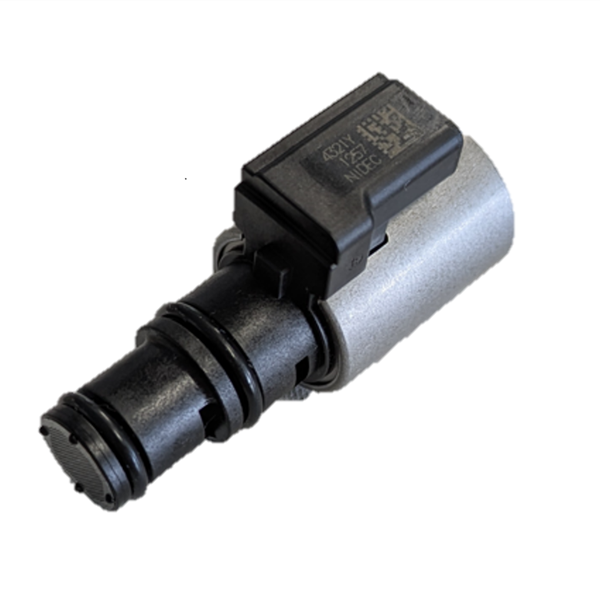

Hydraulic solenoid electromagnetic valve
ON/OFF Solenoid
Company：NIDEC POWERTRAIN SYSTEMS CORPORATION
Compact size and low cost realized
This ON/OFF solenoid delivers a compact design and cost savings, realized through the utilization of a resin nozzle structure and a ball valve structure.
Key Feature: Cost reduction achieved through a resin nozzle design.
Product's data
Basic information
Solenoid type | 3way pressure control ON/OFF Solenoid (Normally Closed type) |
|---|---|
Size | Electromagnetic part; φ24 × 31, pressure regulator; φ18 × 19 |
Usage environment | In oil (Mounting in oil pan) |
Control oil | ATF |
Oil temperature range | -40 ? 140℃ |
Voltage range | 9-16V (rated 13.5V) |
Coil resistance | 16Ω at 20℃ |
Connector | 1 pin |
Solenoid type | 3way pressure control ON/OFF Solenoid (Normally Closed type) | Size | Electromagnetic part; φ24 × 31, pressure regulator; φ18 × 19 |
|---|---|---|---|
Usage environment | In oil (Mounting in oil pan) | Control oil | ATF |
Oil temperature range | -40 ? 140℃ | Voltage range | 9-16V (rated 13.5V) |
Coil resistance | 16Ω at 20℃ | Connector | 1 pin |
Input
Inlet oil pressure | 690 kPa |
|---|
Inlet oil pressure | 690 kPa |
|---|
Output
Control pressure | 0－690 kPa |
|---|
Control pressure | 0－690 kPa |
|---|
Characteristic Graph
