GRANMET SF + MightyShield Σ : enhances your productivity
Shorter and shorter machining times are the most focusing requirement at time of gear cutting industries.
In that case,
High speed material GRANMET SF and All-purpose coating MightyShield Σ is the solution.
PERFORMANCE
- Capable of ultra-high-speed hobbing at a speed of 300 m/min or more,

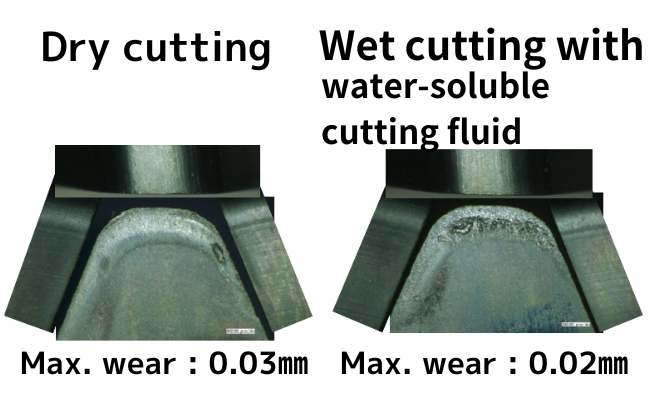

- Demonstrates performance in any cutting environment, dry or wet
Example
Work Spec
- module 2.7
- PA 20°
- HA 31° [RH]
- NT 69
- Width 25 ㎜
- Material SCM420H
Tool Spec
- OD φ90
- Starts 4
- Flutes 16
- Material GRANMET SF
- Coating MightyShield Σ
Cutting condition
- Cut speed 350 m/min
- AX feed 2.3 ㎜/rev
- Hob shift No shift
- Nos of cut part 50pcs
- Cutting length 100m
