Cutting Tool News

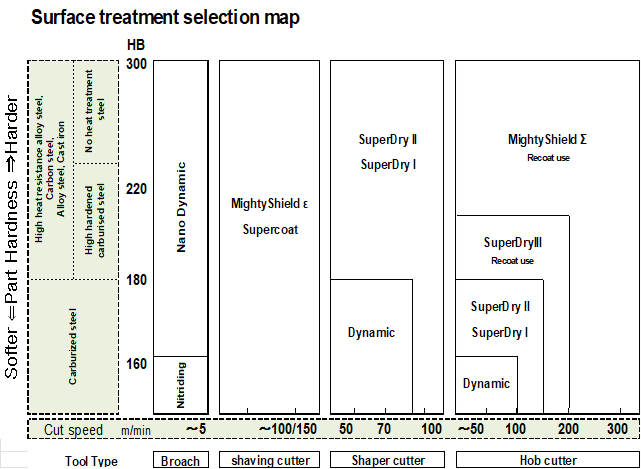

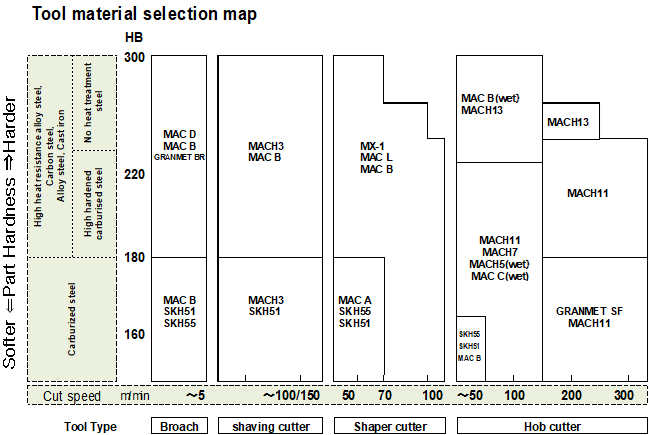

Selection Map / Tool materials, Surface treatments

Selection Map / Tool materials, Surface treatments(PDF)

Product page
