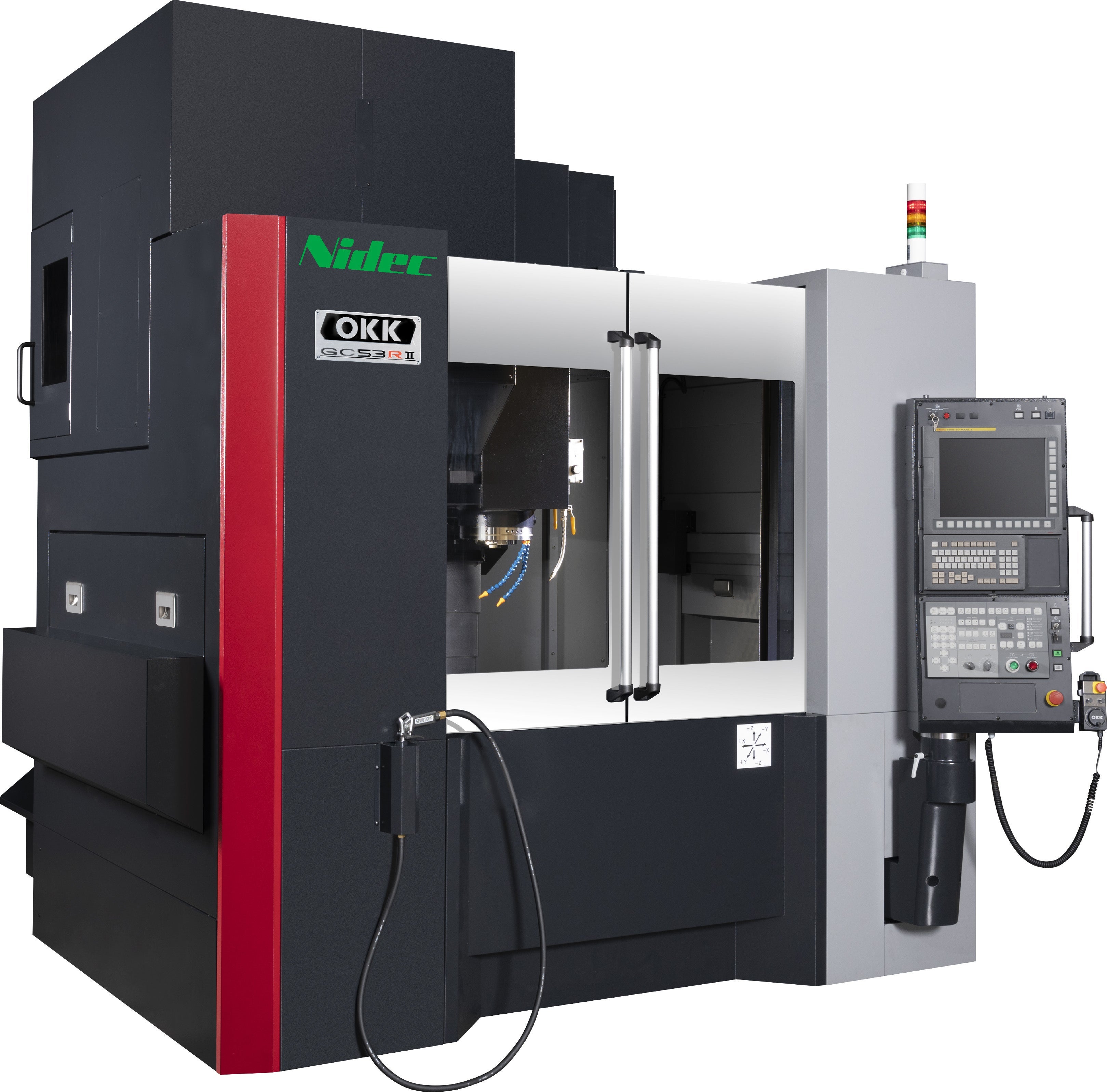

GC Series GC53RII
Company: Nidec OKK Corporation
This is a grinding center, which can machine high-hardness and brittle materials, elevates grinding to a new level!
This powerful machining center produced by Nidec OKK comes with grinding function, and can machine high-hardness an brittle materials. Capable of machining a variety of materials, GC53RII boasts high efficiency and accuracy. In addition, with an automatic grinding stone-based tool exchanger and an NC function, this model promotes the automation of the grinding process.
- Grinding center
- Contact information for product inquiry
- Contact us
Product's data
Product's specifications
| Travel on X/Y/Z axis | 1050×530×510mm |
|---|---|
| Table's dimensions | 1050×560mm |
| Spindle speed | 100～14000min-1 |
| Spindle inner taper | 7/24-tapered No.40 Dual contact |
| Number of storable tools | 30 |
| Floor space required for operation(left-to-riget✕depth) | 3535×4570×2831mm |
The product's features
High-rigidity machine combining the performance of the best-selling VM series and advanced GC functions Best fit to ferrous grinding.
The X, Y and Z axes are equipped with stainless steel telescopic covers. In addition, the Y axis has a ball screw protection cover. All these features securely maintain the high machining accuracy.
No.40, 14000-rpm MS spindle with reputation established in the use on the VM series is provided as standard equipment. No.50, 12000-rpm MS spindle can be mounted optionally on GC53RⅡ or GC76RⅡ in the case where high rigidity is needed particularly for grinding ferrous materials.
