Slim Type
MPLS Series ( Compact )
Company：NIDEC MACHINE TOOL CORPORATION
With a new signal detection method and highly integrated circuit board, this is an absolute type of scales with a simple structure that does not require scale wiring or an A/D converter.
High resolution, slim and simple, ideal for small machines
Feature

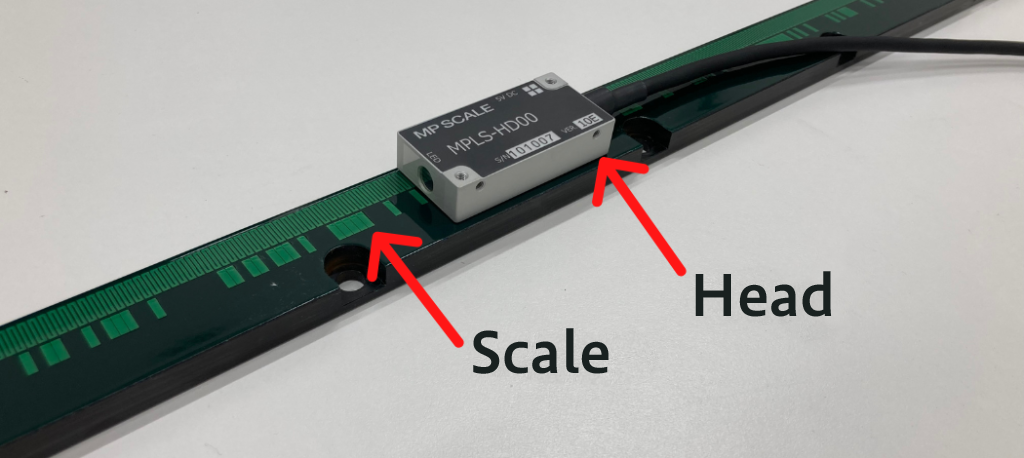

Compact (thin), so it can be installed in the optimum position of the machine Space-saving with built-in preamplifier
High accuracy 10μm/m(pp)
Resistant to dust, oil, and condensation, no air purge required
Has the same coefficient of thermal expansion as the machine, and is resistant to thermal displacement
Non-contact, high accuracy forever
Absolute expression detection No need to return to origin after power ON
・Serial connection Mitsubishi CNC, FANUC, SSI (SEIMENS), Biss-C (general NC)
・A phase・B phase・Z phase
Use
Product lineup
| Model | scale Length L | stroke S. | pitch accuracy | Minimum resolution | Connection NC |
|---|---|---|---|---|---|
| MPLS-0170A | 225 | 170 | 4.0 μm | 0.05 μm | ・Serial connection Mitsubishi CNC FANUC SSI (SEIMENS) Biss-C (general NC) ・A phase・B phase・Z phase |
| MPLS-0270A | 325 | 270 | 4.8 μm | ||
| MPLS-0370A | 425 | 370 | 5.6 μm | ||
| MPLS-0470A | 525 | 470 | 6.5 μm | ||
| MPLS-0570A | 625 | 570 | 7.2 µm | ||
| MPLS-0670A | 725 | 670 | 8.0 μm | ||
| MPLS-0770A | 825 | 770 | 8.8 μm | ||
| MPLS-HD00 head | |||||
Main Specifications
