Support for programming creation
EasyPRO
Company：NIDEC OKK CORPORATION
EasyPRO is installed with programs convenient for making NC programs as standards. These programs are available for the user to improve his/her program writing efficiency.
A macro program guidance window for machining and measurement appears in a program editing window. The user can input a program while referring to a guidance chart or input data. In addition, EasyPRO, installed with simple CAD functions, helps the user to use CAD data to perform data-based contour machining and intersecting point calculation in a window, which makes program writing more efficient.
Features 1
The product's features

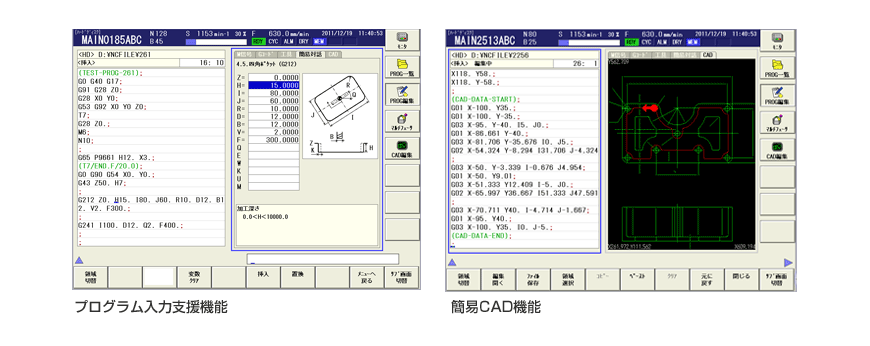

1.Program input support function
A guidance window appears on the right side of the program editing window. The user can input programs while seeing a guidance chart and explanations on machining and measurement macro data, which are available as options.
2.Simple CAD Function (for 15-inch indicators only)
EasyPRO, installed with easy-to-use CAD functions, helps the user to read CAD data and make drawings, while using those CAD data to input NC programs (hole and contour machining, etc.).
