Gear Hobbing Machines
Gear Hobbing Machine with Chamfering Unit GE25CF
Company：NIDEC MACHINE TOOL CORPORATION
Hobbing Machine that Integrates Hobbing and Chamfering Processes to Help Automation and Reduce Labor of Gear Manufacturing
GE25CF
Max. workpiece diameter(mm)
φ250
Max. module
6
Features
Chamfering - with High Speed, Precision and Efficiency -

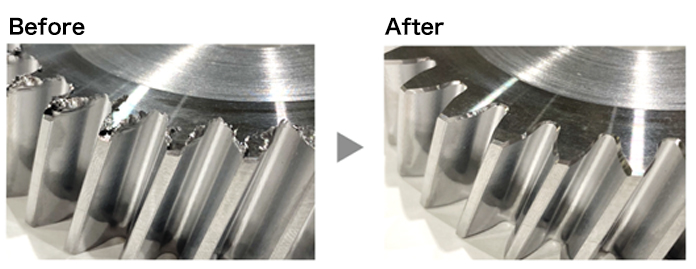

The GE25CF utilizes generating cutting with our special ChamferX cutting tools, eliminating burrs in the tooth flank and end face. Using the Nidec cutting edge tool design simulation software, specific defined chamfering shapes are created including tooth root and complete edges up to 1mm or more.
Special cutting tool ChamferX
Better operability
Cutting area for easy maintenance
With a wider opening to its front door, maintenance of the hob/chamfer cutter is possible from front side with 4ST ring loader and chamfering unit installed.
The operation screen is a large 10.4-inch screen
.jpg)
Simple input and help function available through graphical display screen
