Vertical Machining Center

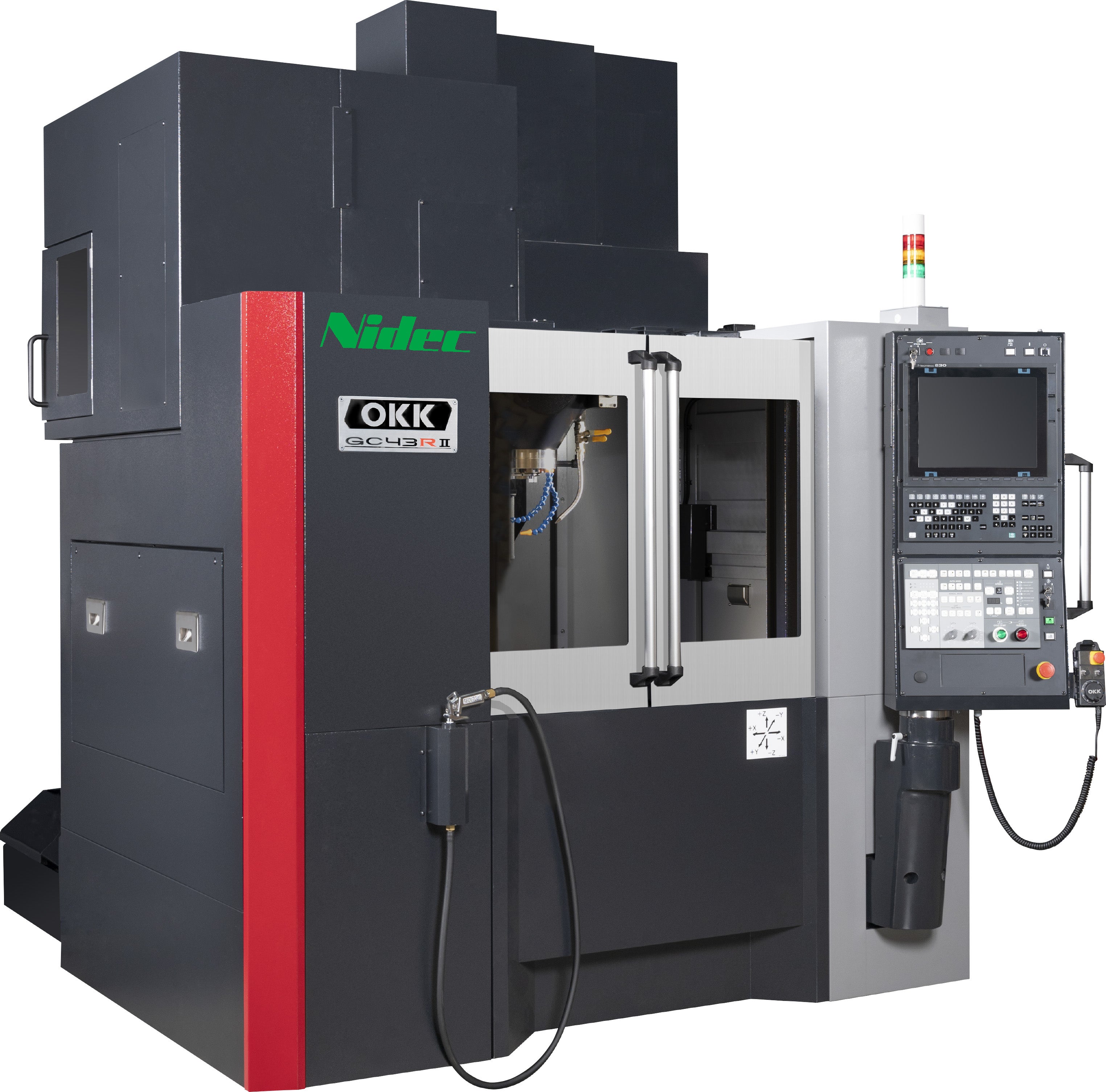

GC Series GC43RII
Company：NIDEC OKK CORPORATION
This machine alone can perform both grinding and cutting!
This grinding center, made based on a machining center, handles items of a wide variety of sizes. With a wide variation and software programs available, this model has functions required for grinding as standard.
Product's data
Basic information
Axial travel distance（X/Y/Z) | 630×430×460mm |
|---|---|
Table work surface area | 800×420mm |
Spindle rotating speed | 100～14000min-1 |
Spindle taper hole | BT40(2-face binding type) |
Number of storable tools | 20 |
Floor Space | 3703×4405×2757mm |
Axial travel distance（X/Y/Z) | 630×430×460mm | Table work surface area | 800×420mm |
|---|---|---|---|
Spindle rotating speed | 100～14000min-1 | Spindle taper hole | BT40(2-face binding type) |
Number of storable tools | 20 | Floor Space | 3703×4405×2757mm |
The product's features
Column base
This bestselling high-rigidity MC, made based on the VM Series models, has in itself all GC functions available, and is the best model for ferrous metal grinding.
Complete resistant to rust and dust supported by the abundant delivery records
This model's x-, y-, and z-axes adopt stainless telesco covers, and the y-axis uses as standard a cover to protect ball screws, maintaining the machine's accuracy perfectly. (Photo: GC53R)
Spindle
This model is equipped, as standard, the No. 40, 14000min-1MS spindle, which is well received with the VM Series. GC53R and GC76R can install the No. 50, 12000min-1MS spindle (OP). This model demonstrates its strength especially in ferrous material grinding, which requires rigidity. (Photo: GC53R)
