Vertical Machining Center

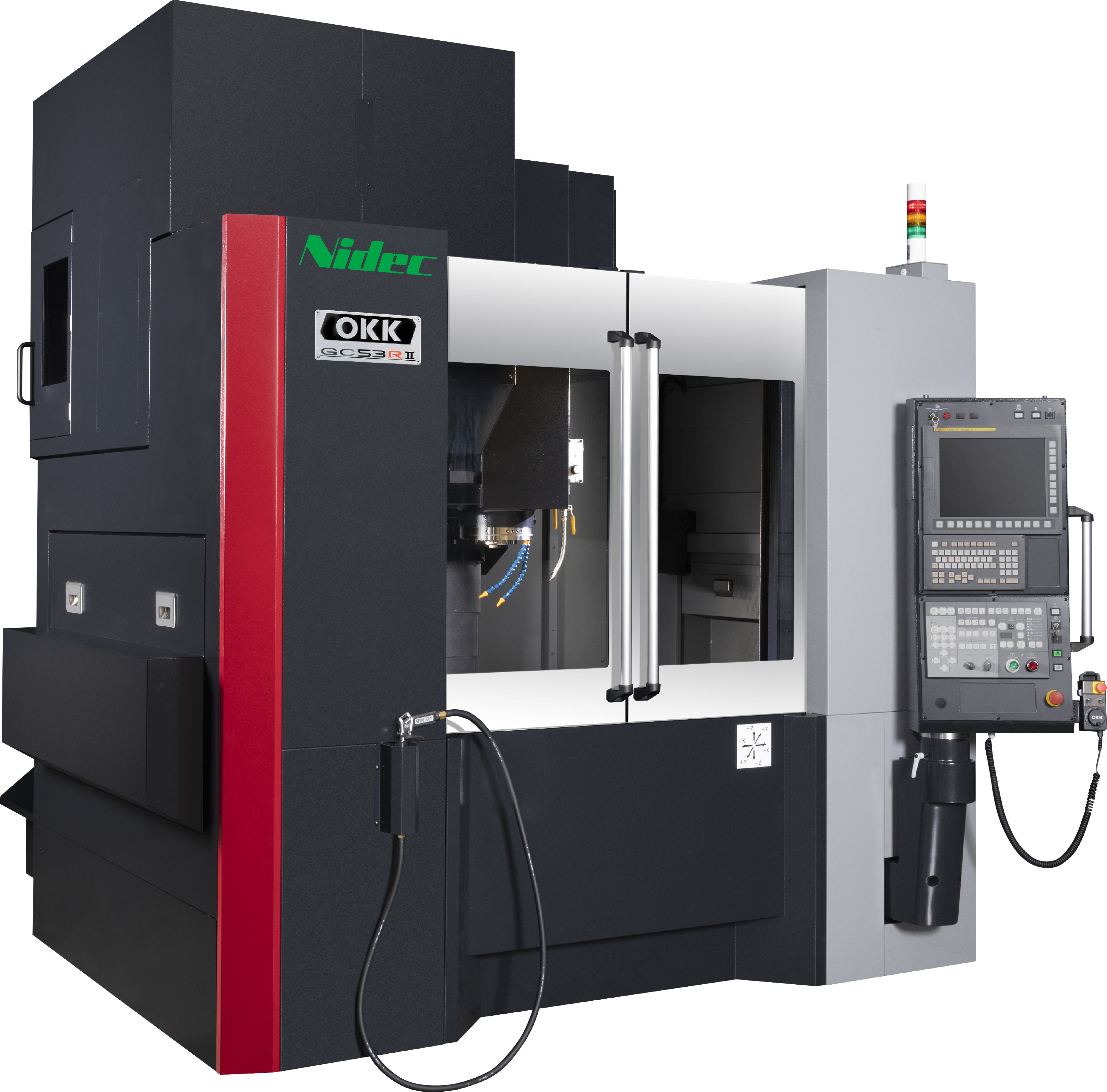

GC Series GC53RII
Company：NIDEC OKK CORPORATION
This is a grinding center, which can machine high-hardness and brittle materials, elevates grinding to a new level!
This powerful machining center produced by Nidec OKK comes with grinding function, and can machine high-hardness an brittle materials. Capable of machining a variety of materials, GC53RII boasts high efficiency and accuracy. In addition, with an automatic grinding stone-based tool exchanger and an NC function, this model promotes the automation of the grinding process.
Product's data
Basic information
Axial travel distance（X/Y/Z) | 1050×530×510mm |
|---|---|
Table work surface area | 1050×560mm |
Spindle rotating speed | 100～14000min-1 |
Spindle taper hole | 7/24-taperd No.40(Two-face contact type) |
Number of storable tools | 30 |
Floor Space | 3535×4570×2831mm |
Axial travel distance（X/Y/Z) | 1050×530×510mm | Table work surface area | 1050×560mm |
|---|---|---|---|
Spindle rotating speed | 100～14000min-1 | Spindle taper hole | 7/24-taperd No.40(Two-face contact type) |
Number of storable tools | 30 | Floor Space | 3535×4570×2831mm |
The product's features
Column base
This bestselling high-rigidity MC, made based on the VM Series models, has in itself all GC functions available, and is the best model for ferrous metal grinding.
Complete resistant to rust and dust supported by the abundant delivery records
This model's x-, y-, and z-axes adopt stainless telesco covers, and the y-axis uses as standard a cover to protect ball screws, maintaining the machine's accuracy perfectly.
Spindle
This model is equipped, as standard, the No. 40, 14000min-1MS spindle, which is well received with the VM Series. GC53R and GC76R can install the No. 50, 12000min-1MS spindle (OP). This model demonstrates its strength especially in ferrous material grinding, which requires rigidity.
