Vertical Machining Center

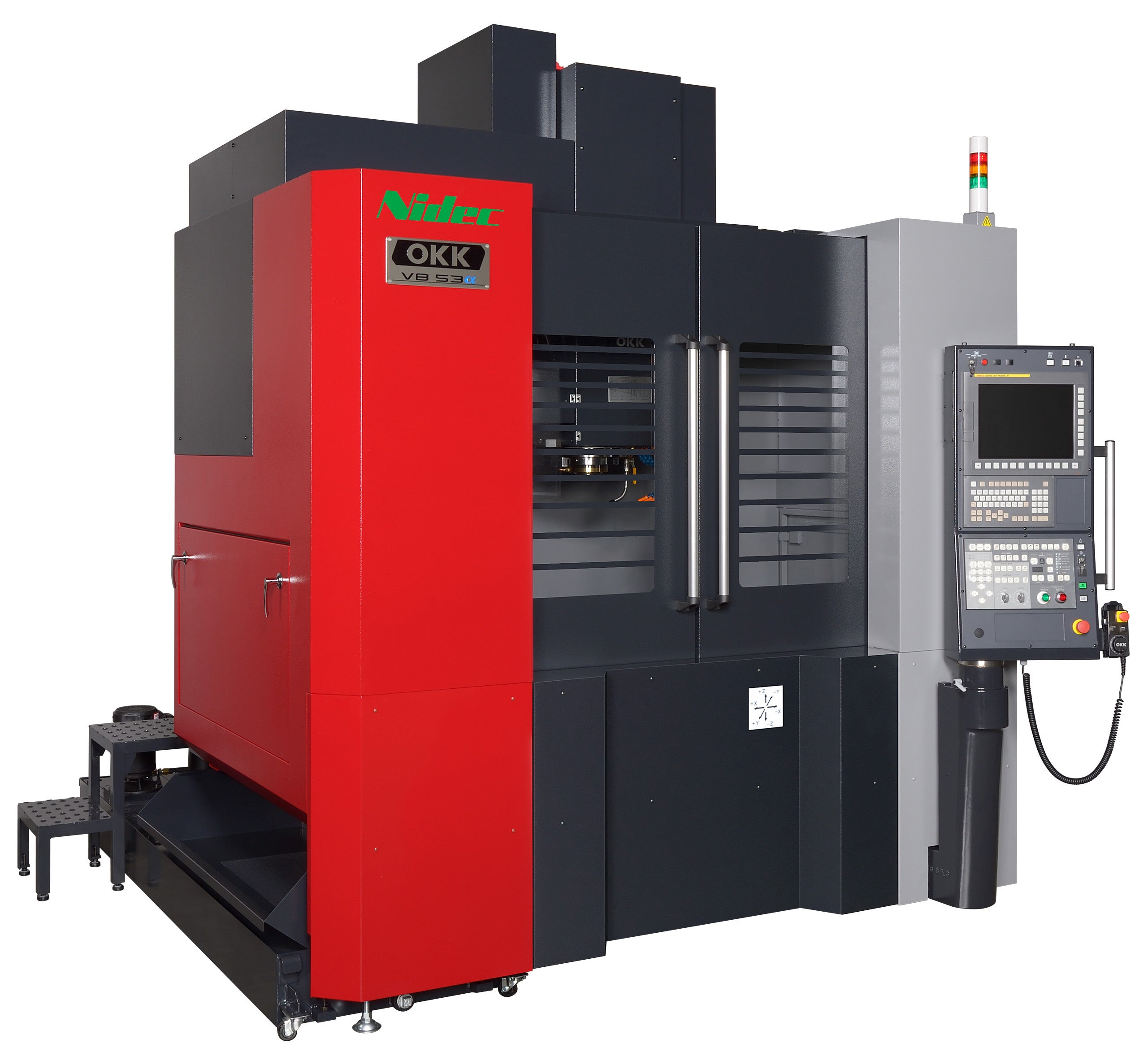

VB53α
Company：NIDEC OKK CORPORATION
This is a vertical machining center that machines dies and high-precision components with high quality.
By suppressing its residual vibration from high-speed machining to the lowest possible level, this model can machine surfaces better, and machine items faster, than before. Capable of adapting to temperature changes in a general factory environment, VB53α is equipped with "Soft Scale Cube," an environmental heat displacement correction program that helps stabilize machining accuracy. Also installed in this model as standard are: a linear scale, high-resolution (small lead) ball screws, hyper HQ mode B, and a great-capacity data server, all of which support this model's high-speed and -quality die machining.
Product's data
Basic information
Axial travel distance（X/Y/Z) | 1050/530/510mm |
|---|---|
Table work surface area | 1260x600mm |
Table's maximum loadable weight | 1200kg |
Rapid traverse rate | XYZ：20m/min |
Spindle rotating speed | 20000min-1 |
Spindle taper hole | No. 40 |
Number of storable tools | 30 (OP：36) |
Axial travel distance（X/Y/Z) | 1050/530/510mm | Table work surface area | 1260x600mm |
|---|---|---|---|
Table's maximum loadable weight | 1200kg | Rapid traverse rate | XYZ：20m/min |
Spindle rotating speed | 20000min-1 | Spindle taper hole | No. 40 |
Number of storable tools | 30 (OP：36) |
