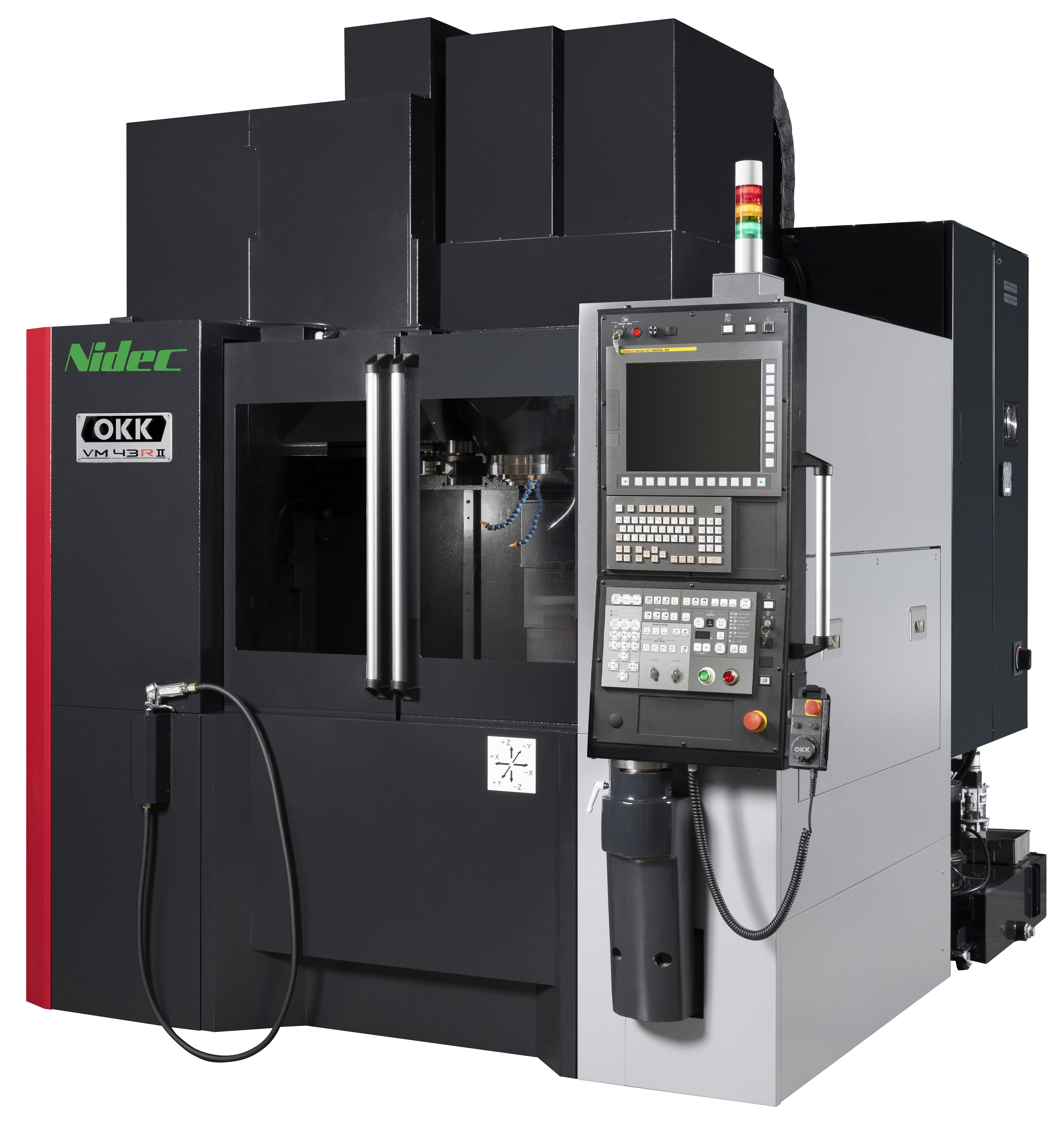

Vertical Machining Center
VM/R Series VM43RII
Company：NIDEC OKK CORPORATION
Product's data
Basic information
Axial travel distance（X/Y/Z) | 630/430/460mm |
|---|---|
Table work surface area | 800x420mm |
Table's maximum loadable weight | 500kg |
Rapid traverse rate | XY：30m/min Z：20m/min |
Spindle rotating speed | No. 40：8000(OP：6000,14000,20000)min-1、 No. 50：8000min-1 |
Spindle taper hole | No. 40 / No. 50(2-face binding type) |
Number of storable tools | 20 (OP：30 No.40 onry) |
Axial travel distance（X/Y/Z) | 630/430/460mm | Table work surface area | 800x420mm |
|---|---|---|---|
Table's maximum loadable weight | 500kg | Rapid traverse rate | XY：30m/min Z：20m/min |
Spindle rotating speed | No. 40：8000(OP：6000,14000,20000)min-1、 No. 50：8000min-1 | Spindle taper hole | No. 40 / No. 50(2-face binding type) |
Number of storable tools | 20 (OP：30 No.40 onry) |
This video is in Japanese only
The product's features
Column base
With the base of its column changed to a taper shape to make the base 30% wider, and with parts of its main unit made into a high-rigidity, box-type structure to allocate diagonal ribs (of a triangle rib structure) properly, this model is rigid and excellent in absorbing vibration. Thanks to synergies with the sturdy triangular guide on each sliding surface, this model boasts smooth cutting performance and high-quality finished surfaces.
Spindle
This model's spindle uses a gear spindle for deep cut, and it is an MS spindle that is excellent at high-speed machining. With double-face contact spindles installed as standard, the output of this model's standard spindles has improved (No. 40: 11.5/7.5kW; and No. 50: 15/11kW). With this model, the user can choose a spindle from those for high-quality die machining to those for component or mass-production machining, subject to what circumstances require.
Table
This model's accessibility has improved, with the distance from its cover's front area to the spindle 715mm, and with the distance of 900mm to the table. With the door that opens all the way to its ceiling section and without the top section's door rail that was with conventional models, this model is easier to operate than them.
