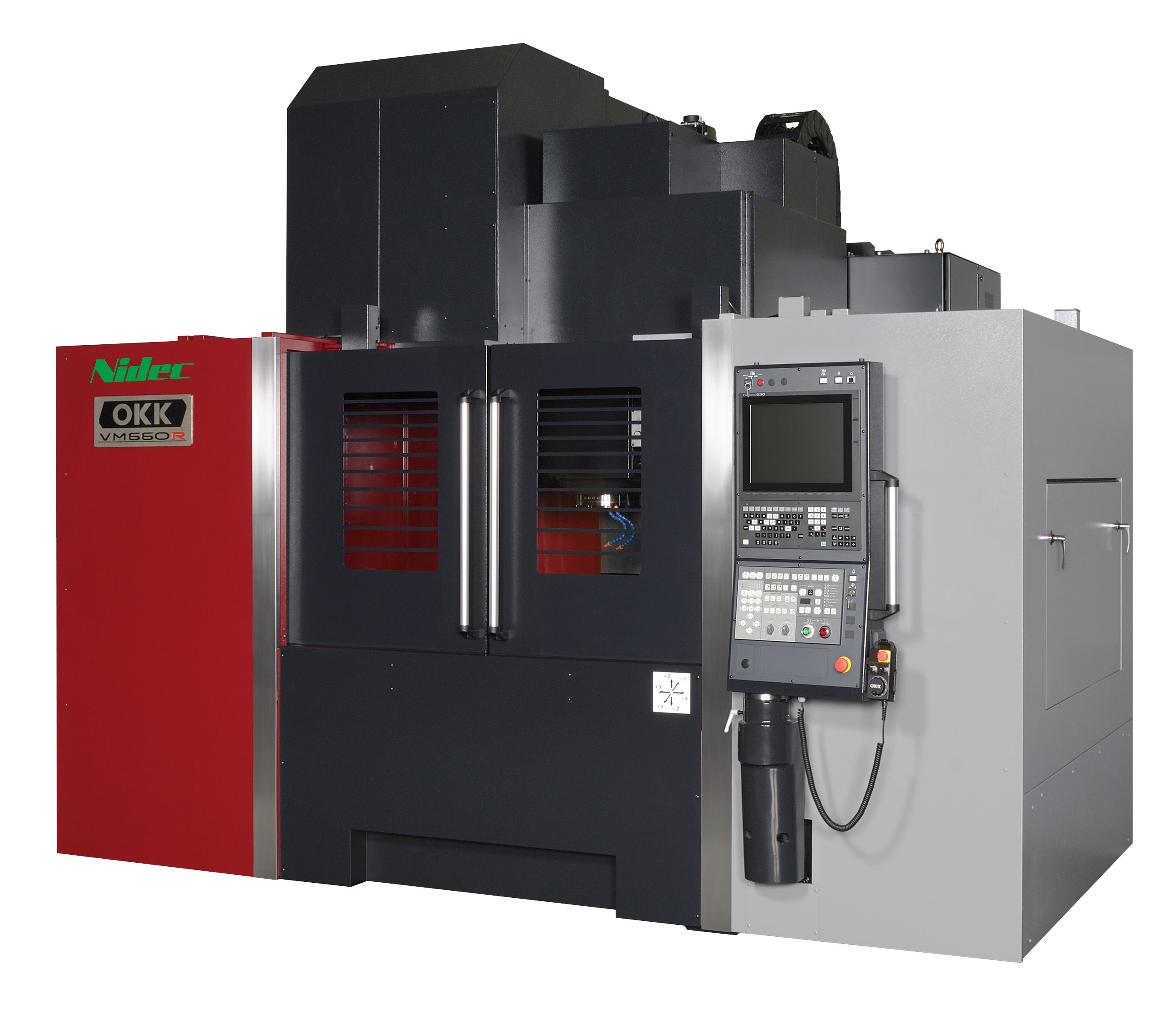

Vertical Machining Center
VM/R Series VM660R
Company：NIDEC OKK CORPORATION
This model, which boasts best-in-class deep cut performance, can efficiently machine difficult-to-cut and other materials!
This model's main unit adopts a high-rigidity box-type structure, while each axis sliding surface uses a sturdy, rectangular sliding guide, to improve the model's vibration damping performance. In addition, with the adoption of a three-level gear and a large-diameter bearing, VM660R can efficiently process dies and automotive and airplane components that require deep cut.
Product's data
Basic information
Axial travel distance（X/Y/Z) | 1300/660/660mm |
|---|---|
Table work surface area | 1400x660mm |
Table's maximum loadable weight | 2000kg |
Rapid traverse rate | XY：24m/min Z：20m/min |
Spindle rotating speed | 4500(OP：6000,8000,12000)min-1 |
Spindle taper hole | No. 50 |
Number of storable tools | 30 (OP：40,60) |
Axial travel distance（X/Y/Z) | 1300/660/660mm | Table work surface area | 1400x660mm |
|---|---|---|---|
Table's maximum loadable weight | 2000kg | Rapid traverse rate | XY：24m/min Z：20m/min |
Spindle rotating speed | 4500(OP：6000,8000,12000)min-1 | Spindle taper hole | No. 50 |
Number of storable tools | 30 (OP：40,60) |
This video is in Japanese only
The product's features
Column base
Vertical Machining Center VM660R
Sliding surface
This model achieves a best-in-class deep-cut performance that enables the high-efficiency machining of difficult-to-cut and other materials!
Spindle
This model has perfect ant-thermal displacement measures in place. The spindle head's main unit has a side wall cooling function, while the ball screws adopt a hollow cooling structure, and, to suppress the effects of chips and coolant heat on its machining accuracy, this model has on its bed section a trough exclusively for coolant.
