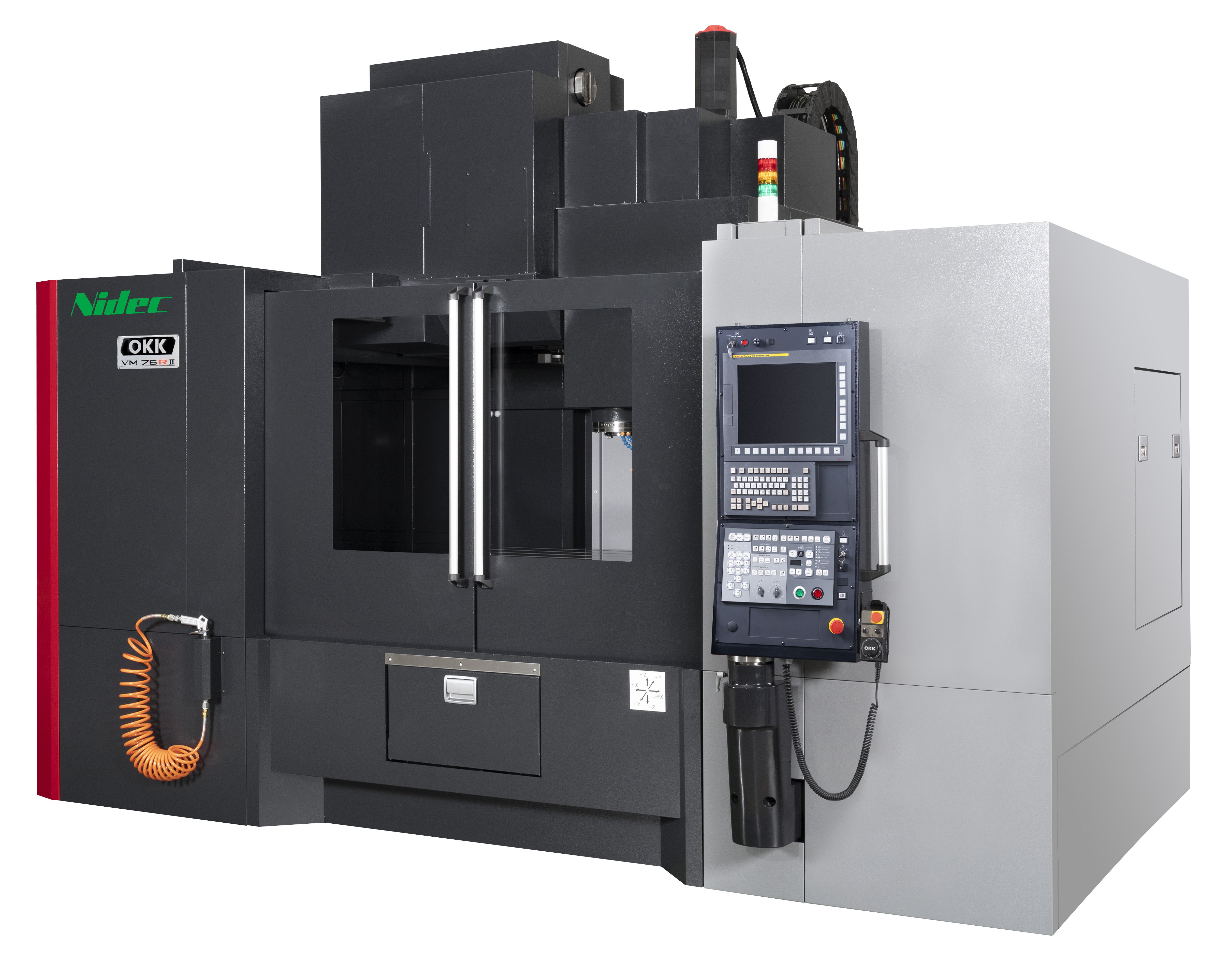

Vertical Machining Center
VM/R Series VM76RII
Company：NIDEC OKK CORPORATION
Product's data
Basic information
Axial travel distance（X/Y/Z) | 1540/760/660mm |
|---|---|
Table work surface area | 1550x760mm |
Table's maximum loadable weight | 1500kg |
Rapid traverse rate | XY：24m/min Z：20m/min |
Spindle rotating speed | No. 40：14000(OP：20000)min-1、 No. 50：8000(OP：12000)min-1 |
Spindle taper hole | No. 40 / No. 50(2-face binding type) |
Number of storable tools | 30(OP：40,(60 No.50 only)) |
Axial travel distance（X/Y/Z) | 1540/760/660mm | Table work surface area | 1550x760mm |
|---|---|---|---|
Table's maximum loadable weight | 1500kg | Rapid traverse rate | XY：24m/min Z：20m/min |
Spindle rotating speed | No. 40：14000(OP：20000)min-1、 No. 50：8000(OP：12000)min-1 | Spindle taper hole | No. 40 / No. 50(2-face binding type) |
Number of storable tools | 30(OP：40,(60 No.50 only)) |
This video is in Japanese only
The product's features
Column base
With the base of its column changed to a taper shape to make the base 30% wider, and with parts of its main unit made into a high-rigidity, box-type structure to allocate diagonal ribs (of a triangle rib structure) properly, this model is rigid and excellent in absorbing vibration. Thanks to synergies with the sturdy triangular guide on each sliding surface, this model boasts smooth cutting performance and high-quality finished surfaces.
Table
By adopting storable built-in steps and wide internal steps as standard, this model makes it easy for the user to step inside it, perform setups, work inside the machine, etc. With the improved accessibility (with the distance from the cover's front section to the table 411mm, and the table height of 1,000mm), the model is easier to operate than before.
Spindle
With the adoption of Nidec OKK's reputable and unique cam-type and high-speed synchronous tool exchanger (patented by Nidec OKK), this model boasts stable tool exchange and excellent durability. With a double-side contact spindle installed as standard, VM53RII can handle tools of up to 380mm in length. With a cooling oil circulation circuit in place for the head of its gear spindle's front section, this model can suppress temperature rise by 14%.
