New Coating MightyShield Σ
An all-purpose coating that protects the cutting edge
Characteristic

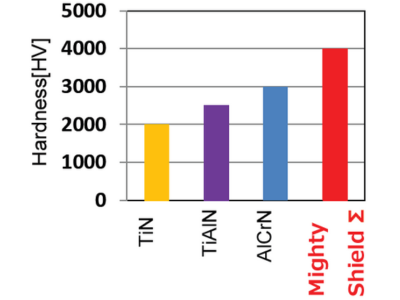

- Achieves long life by employing high hardness film
(HV4000) with excellent heat resistance - Supports a wide range of processing areas (HSS hobs, carbide hobs)
- Demonstrates performance in any cutting environment,dry or wet

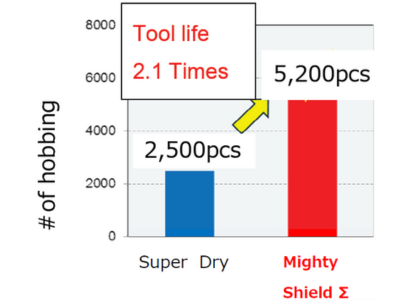

Example 1 GEAR PINON hobbing
【Work spec】
m 2.7 NT 15 PA 20°
HA 30° 20Cr4
【Hob spec】
4-starts 12-gashes
Material ： MACH7
【Cutting condition】
Cutting speed 180m/min
Ax feed 1.0mm/rev
Dry

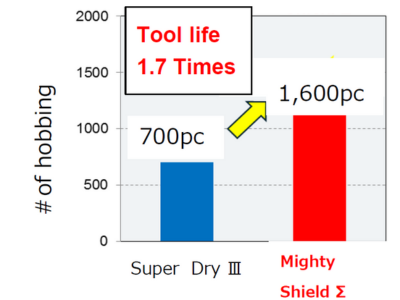

Example 2 GEAR COUNTER hobbing
【Work spec】
M 2.3 NT 55 PA 15°
HA 27° 20Cr4
【Hob spec】
4-starts 14-gashes
Material ： MACH7
【Cutting condition】
Cutting speed 180m/min
Ax feed 2.0mm/rev
Dry
