MX-1 HOB
The resistance for the wear and the chipping get elevated to the next level.
Characteristics

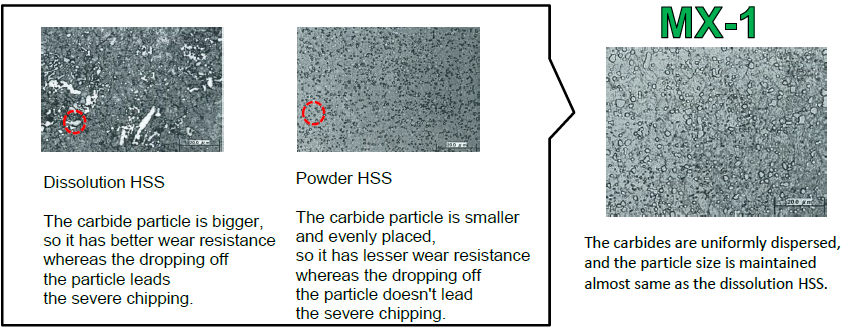

It combines the toughness of Powder HSS and the wear resistance of Dissolution HSS.

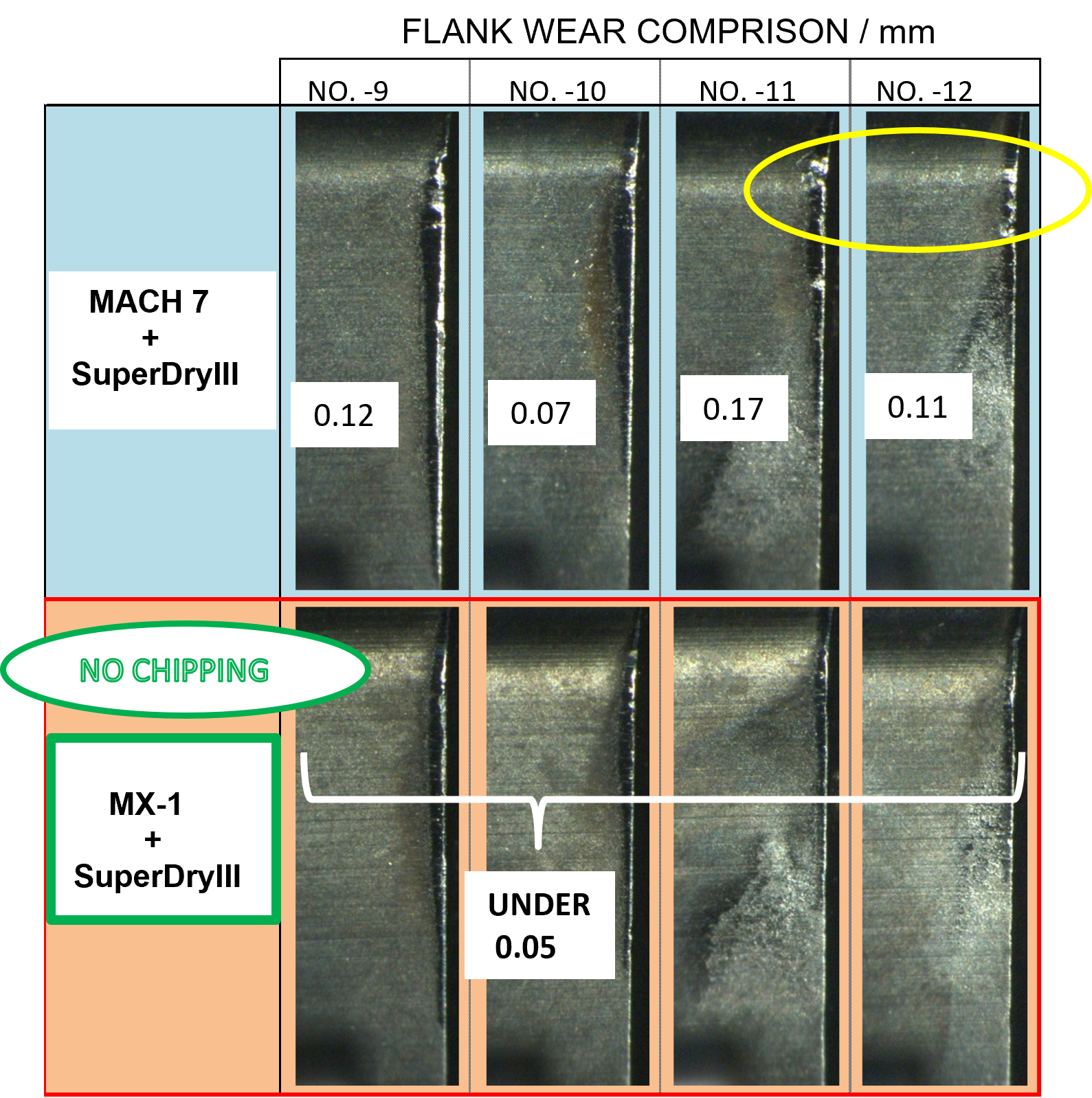

Cutting result
【Workpiece Dimensions】
Module 2.25
PA 17.5°
NT 46
HA 23°
Material SCM415
【Hob Dimensions】
3 starts 16 flutes
MACH7 (HSS) / NEW MATERIAL MX-1
SuperDryIII PVD
(Coat on the cutting face and flank)
【Cutting Conditions】
Dry cut
Cutting speed 250m/min
Axial feed 2.4mm/rev
Climb cut
Cutting length 80m (No shift)
