Exquisite coating exclusively designed for Super-fine pitch cutters/Super-fine pitch gear cutter
Exquisite coating exclusively designed for Super-fine pitch cutters
Characteristics
An ultra-thin coating that tends not to affect the tooth profile errors of the workpiece, developed specifically for high-precision, small-pitch tools, of which hardness is HV4,000.

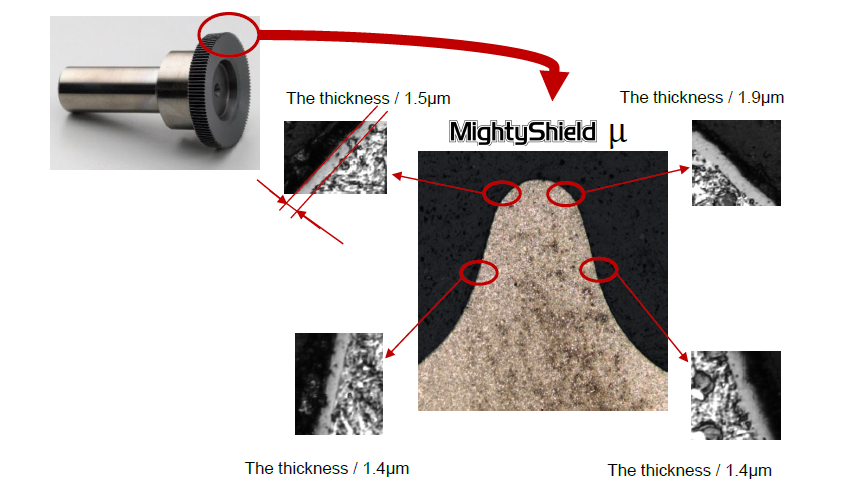

The thickness of the coating is formed as 2μ or less,and the variation in the thickness from the tip to the root of the tooth is kept as 1μ or less.
Disclaimer : It may be not possible to apply depends on the certain cutter shape.
Exquisite coating exclusively designed for Super-fine pitch cuttersMightyShield μ(PDF)

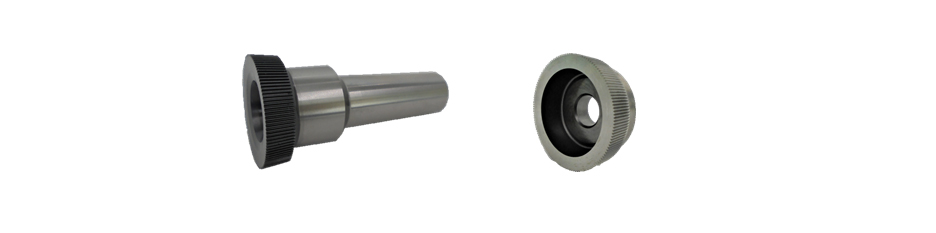

Super-fine pitch gear cutter
Applications
Dimensions
- Gear shaping machining
- Gear skiving machining
Components
- Strain wave gears
- Involute gears
- Ball joints
- Cycloidal discs
Gear cutter dimensions
| Dimensions | Module | 0.1mm minimum |
|---|---|---|
| PCD | 20mm minimum |
| Raw materials | MX-1 | For all components |
|---|---|---|
| GRANMET SK | For higher hardness components |
| Coating | MightyShield μ | The thickness is formed as 2μ or less |
|---|
Disclaimer : It may be not possible to apply depends on the certain cutter shape.
Super-fine pitch gear cutter(PDF)
