High speed variable stroke press

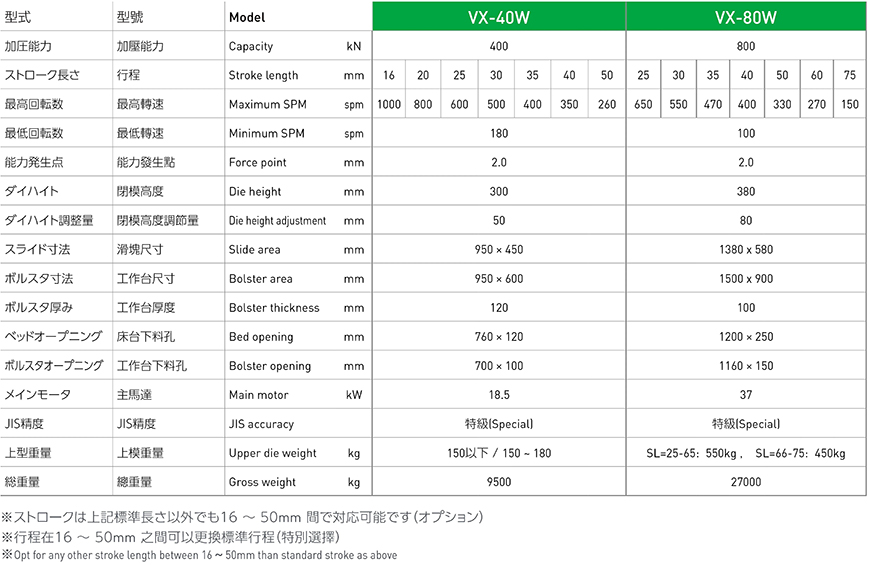

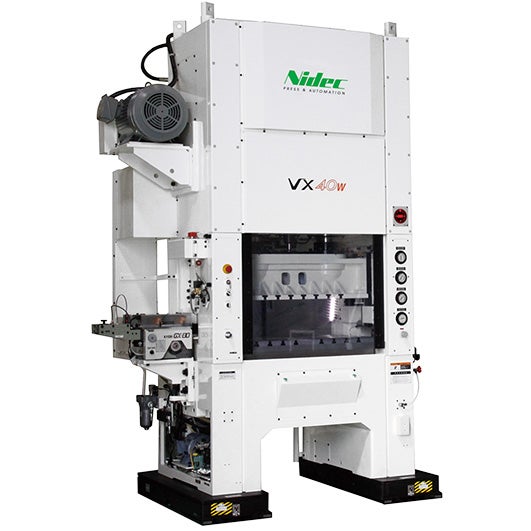

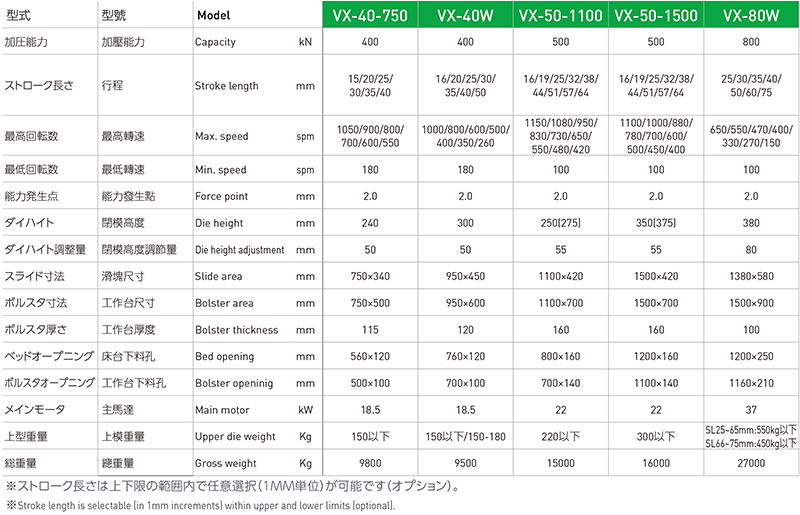

High-performance variable stroke presses（KYORI VX-40W / VX-50 / VX-80W）
Company：NIDEC DRIVE TECHNOLOGY CORPORATION
B.D.C. is always at the same position even if stroke changes. Stroke can be changed in 30 seconds at the fastest.
Perfect for job shops with many product types or prototype production.
Features: Stroke length switchable among 7 settings. Stroke length switch is done in 30 seconds by a touch pannel operation quickest in the world. No need to adjust die height upon stroke change.
