Accessories
Jar mills
Company：NIDEC DRIVE TECHNOLOGY CORPORATION
For mixing paint and glaze
Features: Capable of adjusting the space between two rollers according to the size of jar.
| Model | PTA-01 | PTA-02 |
| Motor | 200W(1/4HP) 230V 50Hz 1-phase | |
| Dimensions | 530×425×350mm | 975×425×350mm |
| Weight | 30kg | 40kg |
Note: Jars are sold separately.

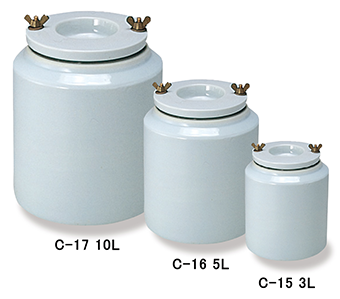

Porcelain Jars
| One to ten liter Porcelain Jars (C-13 to C-17) are alsoavailable to complete your milling needs. Every jar comeswith the porcelain balls needed for milling. Note: Porcelain Jars are not included in PTA-01 and PTA-02Specifications |
Product data
Specifications for Porcelain Jars
| Model | C-12 |
| Dimensions | Φ120㎜ |
| Liter | 0.75 L |
| Note | C-12 cannot be used for PTA-01 and PTA-02. |
| Model | C-13 |
| Dimensions | Φ150㎜ |
| Liter | 1.0 L |
| Model | C-15 |
| Dimensions | Φ210㎜ |
| Liter | 3.0 L |
| Model | C-16 |
| Dimensions | Φ240㎜ |
| Liter | 5.0 L |
| Model | C-17 |
| Dimensions | Φ300㎜ |
| Liter | 10.0 L |
| Note | C-17 cannot be used for Ball mill racks(KE-1). |
Note: Porcelain Jars are not included in PTA-01 and PTA-02
