Pugmills
NRA-04・04S
Company：NIDEC DRIVE TECHNOLOGY CORPORATION
The NRA-04/04S pugmill features newly designed twin augers and a forceful direct gear driven motor.
Its high quality wedging and extruding capacity obtained produces virtually air-free clay and increases clay workability that make this compact pugmill one of the most efficient and competitive on the market. The NRA-04S pugmill includes high quality stainless steel nozzle, auger case, and rollers.

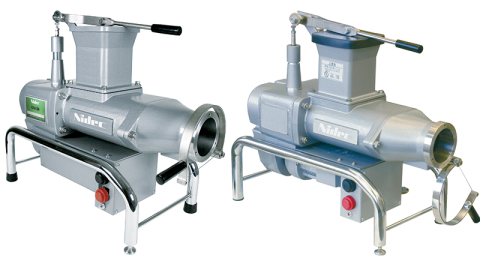

New Pugmill with Remarkable Extruding Capacity
NRA-04/NRA-04S
| Remarkable wedging function, increases clay worability Forceful direct gear driver motor |
 |  |  |
| Patent pending auger design Newly-design augers increase wedging capacity. | The remarkable extruding capacity of the NRA-04/04S produces air free clay and increases clay workability. | Limit switch is a standard safety feature. |

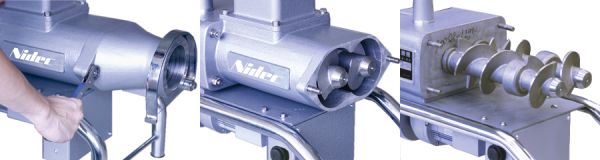

Maintenance
EASY maintenance after Using
Easy access to interior for cleaning and maintenance.
Product data
Specifications
| Model | NRA-04 | NRA-04S |
| Dimensions | 665(1,025 including clay roller shelf)×335×560mm | |
| Weight | 65kg | 75kg |
| Screw Revolution | 19rpm/50Hz | |
| Motor | 200W 4P Single phase 230V | |
| Extruding Capacity | 400kg/hour | |
| Structure | Two Screws | |
| Screw Material | Stainless steel | |
| Screw Case Material | Aluminium | Stainless |
| Extruding Diameter | Dia.90mm | |
