Brushless DC motors

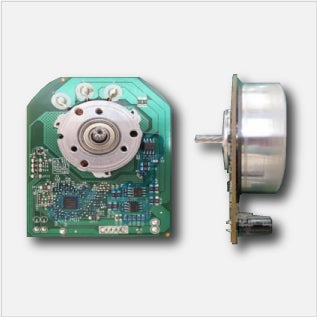

50M Series
Company：NIDEC CORPORATION
Product's data
Basic information
sort by power source type | DC |
|---|---|
Size | φ63 mm |
Size | Φ2.48 inch |
Length | 24.7 mm |
Length | 0.972 inch |
Number of poles | 10 |
Companies handling the product | NIDEC CORPORATION |
Operation temperature | 0～50 ℃ |
sort by power source type | DC | Size | φ63 mm |
|---|---|---|---|
Size | Φ2.48 inch | Length | 24.7 mm |
Length | 0.972 inch | Number of poles | 10 |
Companies handling the product | NIDEC CORPORATION | Operation temperature | 0～50 ℃ |
Input
Rated voltage | 24 V (21.6～26.4 V) |
|---|---|
Frequency | 164.1142 Hz |
Operating current | (～2 A) |
Rated input | 36 W |
Rated voltage | 24 V (21.6～26.4 V) | Frequency | 164.1142 Hz |
|---|---|---|---|
Operating current | (～2 A) | Rated input | 36 W |
Output
Output | 21.03 W |
|---|---|
Torque | 120 mN・m (～120 mN・m) |
RPM | 1673.5 min-1 |
Instantaneous maximum torque | (120～ mN・m) |
Output | 21.03 W | Torque | 120 mN・m (～120 mN・m) |
|---|---|---|---|
RPM | 1673.5 min-1 | Instantaneous maximum torque | (120～ mN・m) |
