Vertical Machining Center
We offer a broad lineup ranging from space-saving models and high-speed cutting machines to heavy-duty machining centers.
Features 1
Heavy-Duty Cutting & High Rigidity
Built on the concept of high rigidity and heavy-duty cutting, Nidec’s machining centers deliver stable, high-precision machining.
Features 2
Meeting Diverse Industry Needs
We support a wide range of applications—from mold and die processing to shape processing for advanced ceramics, machining of exotic metals, and mass production of EV-related components.
Features 3
Integrated Tooling & Machine Solutions for Higher Productivity
Nidec delivers end-to-end solutions spanning both machine tools and cutting tools, ensuring optimal precision and productivity from a single source.
Product Lineup
24 matches
(21 ~ 24)Number of results shown
Series Name | Photo | Features/performance | Industry/sector | X-axis travel amount[ mm ] | Y-axis travel amount[ mm ] | Z-axis travel amount[ mm ] | Table working area[ mm ] | Spindle rotation speed[ rpm ] | Spindle tapered hole | Companies handling the product |
|---|---|---|---|---|---|---|---|---|---|---|
 | This model, which boasts an unprecedentedly wide variety of tables, machines many types of works from general items to long pieces! | NIDEC OKK CORPORATION | ||||||||

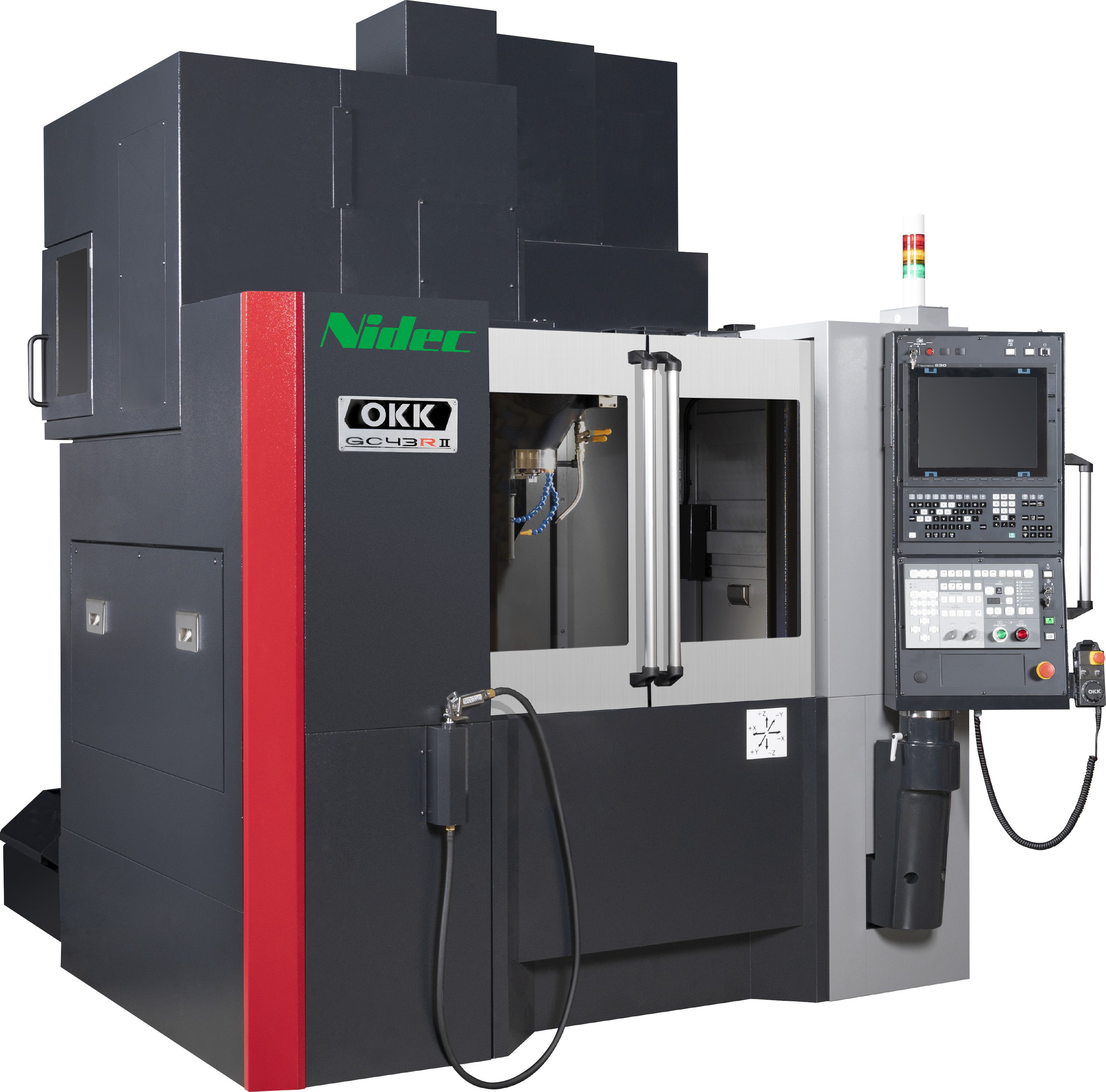

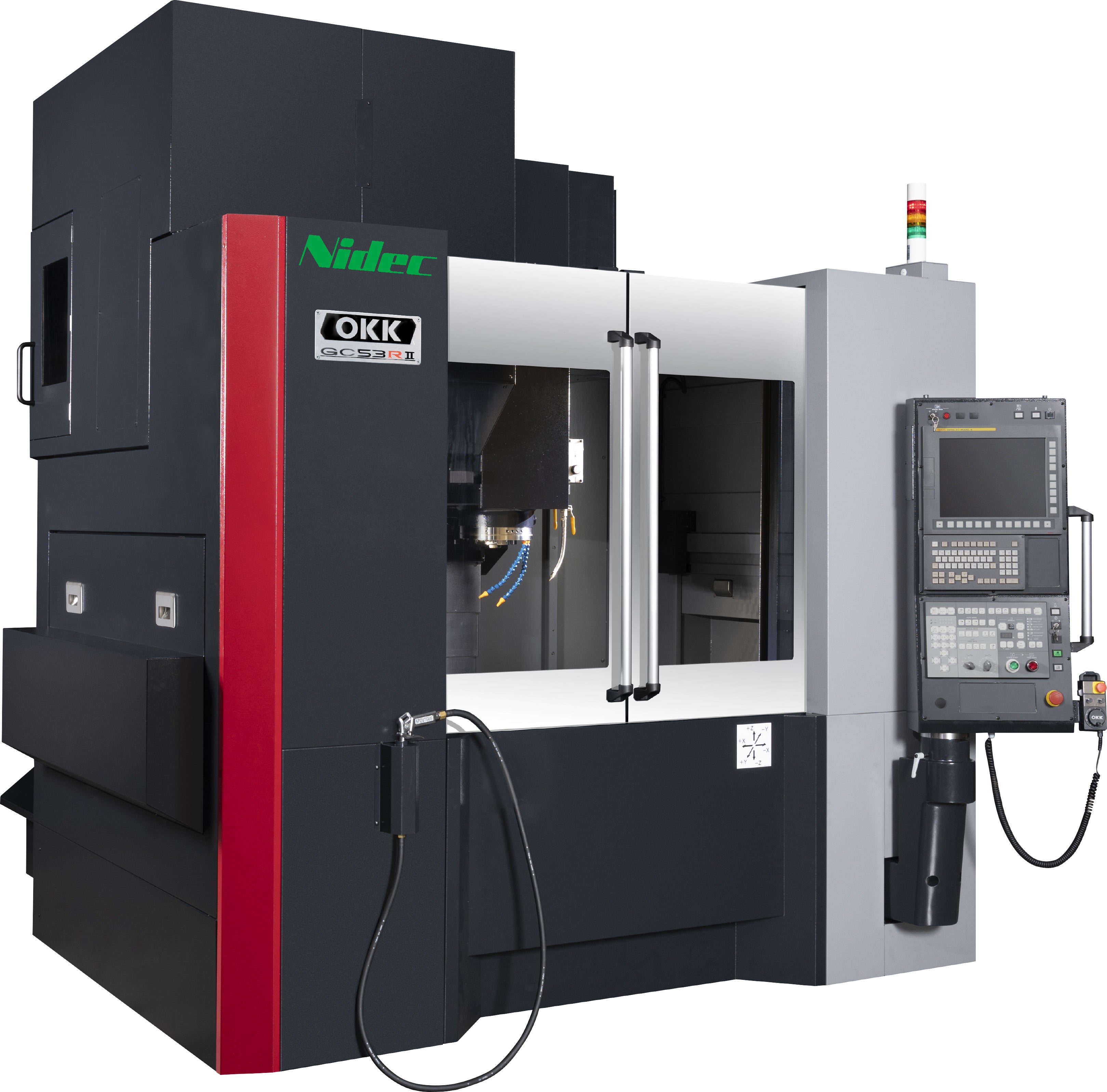

 | This is a grinding center, which can machine high-hardness and brittle materials, elevates grinding to a new level! | 1540 | 760 | 660 | 1550×760mm | 100～14000min-1 | BT40(2-face binding type) | NIDEC OKK CORPORATION | ||
 | This is a grinding center, which can machine high-hardness and brittle materials, elevates grinding to a new level! | 1050 | 530 | 510 | 1050×560mm | 100～14000min-1 | 7/24-taperd No.40(Two-face contact type) | NIDEC OKK CORPORATION | ||
 | This machine alone can perform both grinding and cutting! | 630 | 430 | 460 | 800×420mm | 100～14000min-1 | BT40(2-face binding type) | NIDEC OKK CORPORATION |
