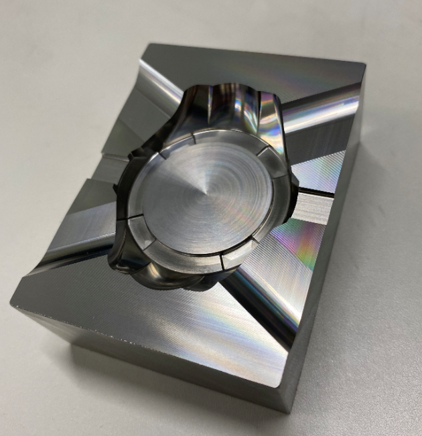

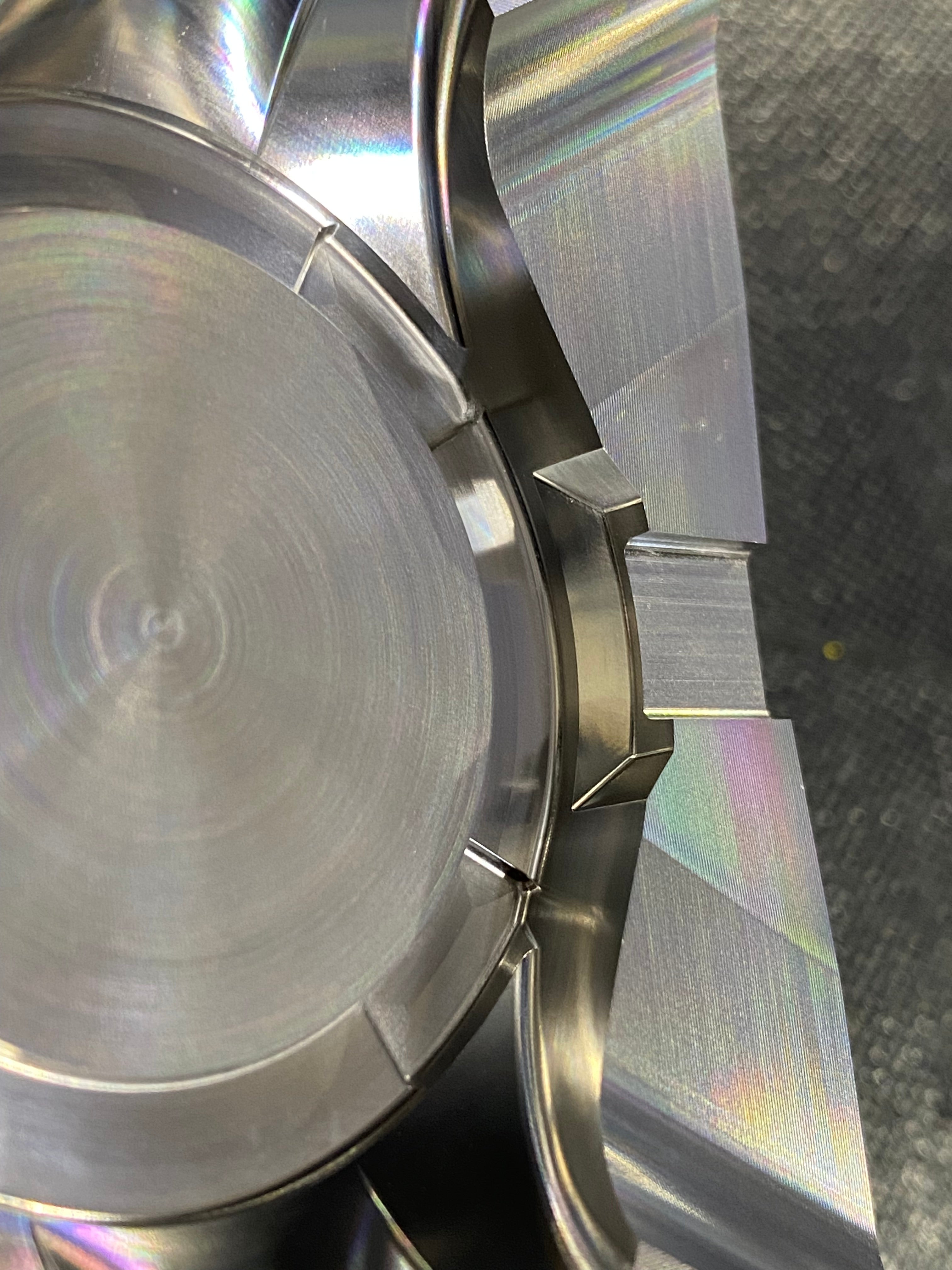

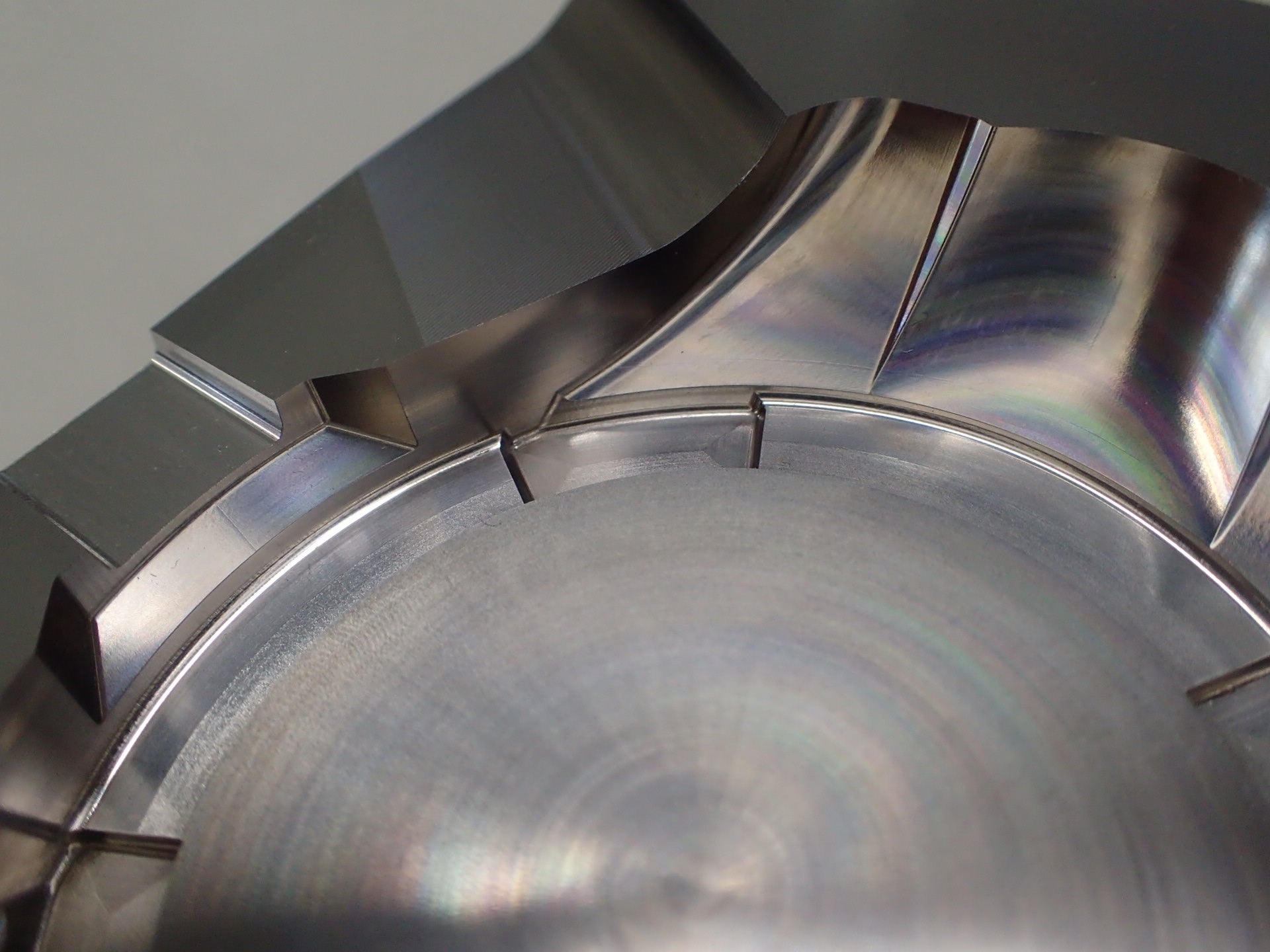

Wristwatch mold sample
Wristwatch mold sample
- Size ： 80X60X30（ｍｍ）
- Material ： SUS303

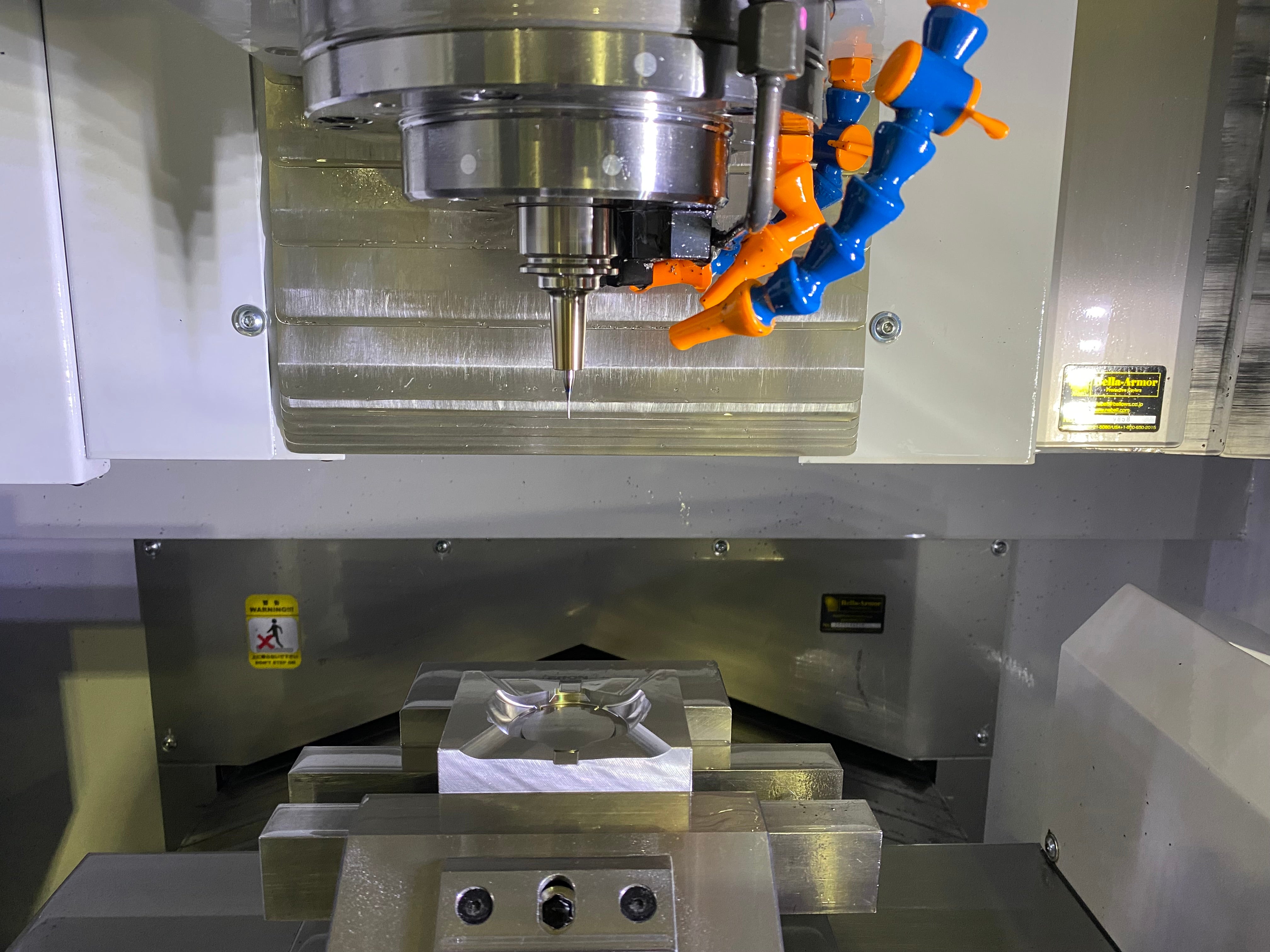

By thoroughly cooling the inside and outside of the spindle, thermal displacement of the spindle during continuous operation is stable, resulting in a smooth finish.
Finishing Process Details
| No. | Process | Program | Tool | Machining Time （h:m:s） |
Machining Method |
|---|---|---|---|---|---|
| 10 | Part surface finishing-1 | 〇0011 | R1 ball end | 0:24:00 | Part surface X-axis scanning line machining |
| 20 | Part surface finishing-1 | 〇0012 | R1 ball end | 0:24:00 | Part surface (flat part) Y-axis scanning line machining |
| 30 | Product flat part processing | 〇0013 | R1 ball end | 0:19:00 | Product flat part Flat circumferential processing |
| 40 | Main art finishing | 〇0014 | R0.5 ball end | 1:38:00 | Product Department Contour line processing |
| 50 | Slide part finishing | 〇0015 | R0.5 ball end | 0:04:00 | Slide part contour line processing |
| 60 | Corner cutting of product part | 〇0016 | R0.3 ball end | 0:15:00 | Product Department Corner processing |
| 03:04:00 | |||||
