Small-size and precision motors｜Brushless DC motors｜Motor
Smart_10S series
companies handling the product：Nidec Corporation
The brushless motor ensures long life and high efficiency.
Brushless DC motors do not require commutators and brushes, which are the disadvantages of brush motors. Brushless DC motors are energy-efficient direct-current drives with outstanding life, reduced noise levels, enhanced quietness, and high efficiency. Because the rotor is on the outside, this has high drive torque, and excels at constant-speed applications. Detection of rotating speed and changing of rotating speed through PWM input are possible. In addition to as stated, customization enables changes to base plate configuration, addition of pinion gears, changing of shaft projection direction, and non-built-in drive circuits.
- characteristics:
- Low noise,Low vibration,Energy saving,Long life,Stability,Enviromental performance,RoHs support
- Contact information for product inquiry
- Contact Us
Product data
Basic information
| sort by power source type | DC |
|---|---|
| Size | φ14 |
| Length | 12.9 mm～ |
| Mass | 6.5～6.5 g |
| Companies handling the product | Nidec Corporation |
| Operating voltage | 12~12 V |
|---|---|
| Operating current | ~0.3 A |
| output | ~1.9 W |
|---|---|
| torque | ~1.5 mN・m |
| Stall torque | 3.8~3.8 mN・m |
| Rpm | 12000~ min-1 |
| No-load rpm | 19600~19600 min-1 |
| Momentary maximum torque | 3.8~3.8 mN・m |
| Instantaneous maximum allowable rpm | 19600~19600 min-1 |

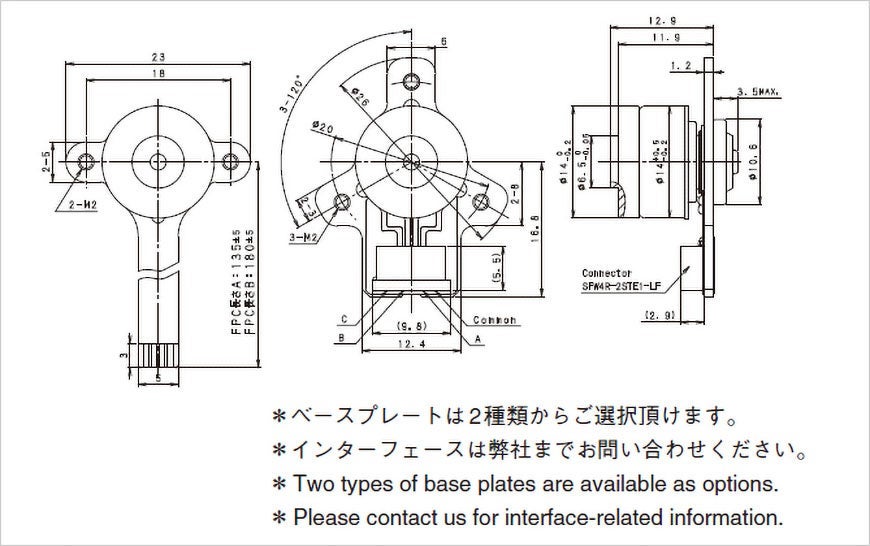

Drawing
