Smart_17S series

companies handling the product：Nidec Corporation

The brushless motor ensures long life and high efficiency.

Brushless DC motors do not require commutators and brushes, which are the disadvantages of brush motors. Brushless DC motors are energy-efficient direct-current drives with outstanding life, reduced noise levels, enhanced quietness, and high efficiency. Because the rotor is on the outside, this has high drive torque, and excels at constant-speed applications. Detection of rotating speed and changing of rotating speed through PWM input are possible. In addition to as stated, customization enables changes to base plate configuration, addition of pinion gears, changing of shaft projection direction, and non-built-in drive circuits.

characteristics:: Low noise,Low vibration,Energy saving,Long life,Stability,Enviromental performance,RoHs support

Contact information for product inquiry: Contact Us

Product data

Product data

Basic information

sort by power source type	DC
Size	φ20.5
Length	19.5 mm～
Mass	20～20 g
Companies handling the product	Nidec Corporation

Input
Operating voltage	12 V12~12 V
Operating current	~1 A

Output
output	~7.2 W
torque	~4.6 mN・m
Stall torque	13 mN・m13~13 mN・m
Rpm	14800~ min-1
No-load rpm	23000 min-123000~23000 min-1
Momentary maximum torque	13 mN・m13~13 mN・m
Instantaneous maximum allowable rpm	23000 min-123000~23000 min-1

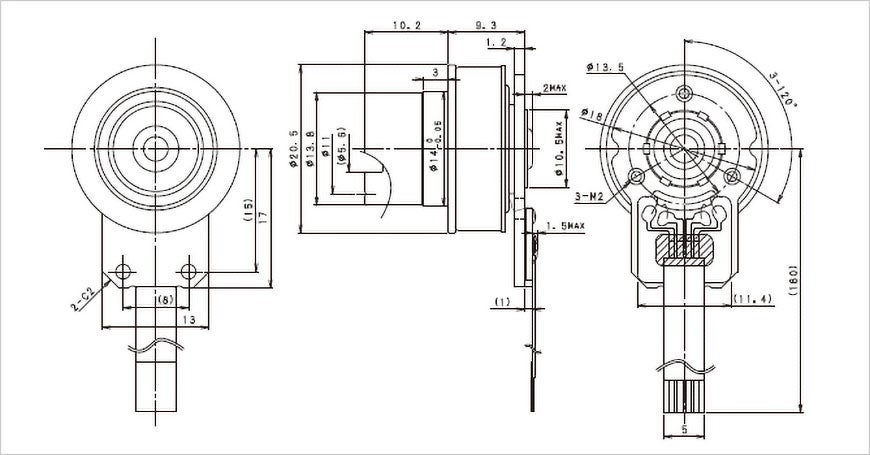

Drawing

Instantaneous maximum allowable rpm
