Small-size and precision motors｜Brushless DC motors｜Motor

Smart_20N series

companies handling the product：Nidec Corporation

The brushless motor ensures long life and high efficiency.

In major central heating and air conditioner manufacturers in North America and Europe, this is used in motors to control dampers used in adjusting temperatures between rooms, and in those linked to fire and smoke detection. In addition to use in building air conditioning, this motor may also be used for driving gears, pumps, and pulleys. Customization in line with customer requirements enables changes to base plate configuration, addition of pinion gears, changing of shaft projection direction, and built-in drive circuits. Please contact us for details.

characteristics:: Low noise,Low vibration,Energy saving,Long life,Stability,Enviromental performance,RoHs support

Contact information for product inquiry: Contact Us

Product data

Product data

Basic information

sort by power source type	DC
Size	φ25
Length	13 mm～
Mass	25～30 g
Companies handling the product	Nidec Corporation

Input
Operating voltage	12 V5~24 V
Operating current	~0.5 A

Output
output	~2.9 W
torque	~9.8 mN・m
Stall torque	21 mN・m21~21 mN・m
Rpm	2800~ min-1
No-load rpm	5300 min-15300~5300 min-1
Momentary maximum torque	21 mN・m21~21 mN・m
Instantaneous maximum allowable rpm	5300 min-15300~5300 min-1

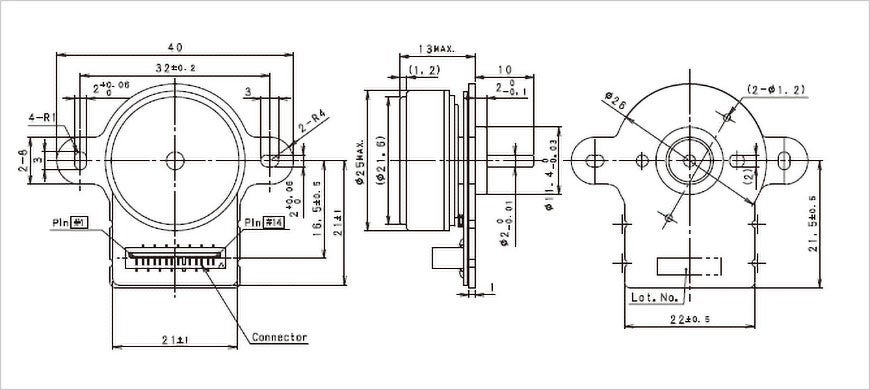

Drawing

Instantaneous maximum allowable rpm
