Small-size and precision motors｜Brushless DC motors｜Motor
CMC_24H series
companies handling the product：Nidec Corporation
Provides long life and high efficiency.
This can be swapped in for the brush and stepping motors currently used in home electronics, automotive equipment, office equipment, and other fields, and fully solves issues with electromagnetic noise, short service life, and low energy efficiency because of high vibration noise, all disadvantages of brush motors, with the result thathigh functionality has been achieved at low cost.
- characteristics:
- Low noise,Low vibration,Energy saving,Long life,Stability,Enviromental performance,RoHs support
- Contact information for product inquiry
- Contact Us
Product data
Basic information
| sort by power source type | DC |
|---|---|
| Size | φ42 |
| Length | 34 mm～ |
| Operation temperature | 0～50 ℃ |
| Mass | 110～110 g |
| Companies handling the product | Nidec Corporation |
| Operating voltage | 11.4~12.6 V |
|---|---|
| Operating current | ~0.9 A |
| output | ~7 W |
|---|---|
| torque | ~25 mN・m |
| Stall torque | 50~ mN・m |
| Rpm | 2550~3150 min-1 |
| No-load rpm | 3500~4300 min-1 |
| Momentary maximum torque | 50~ mN・m |
| Instantaneous maximum allowable rpm | 3900~3900 min-1 |

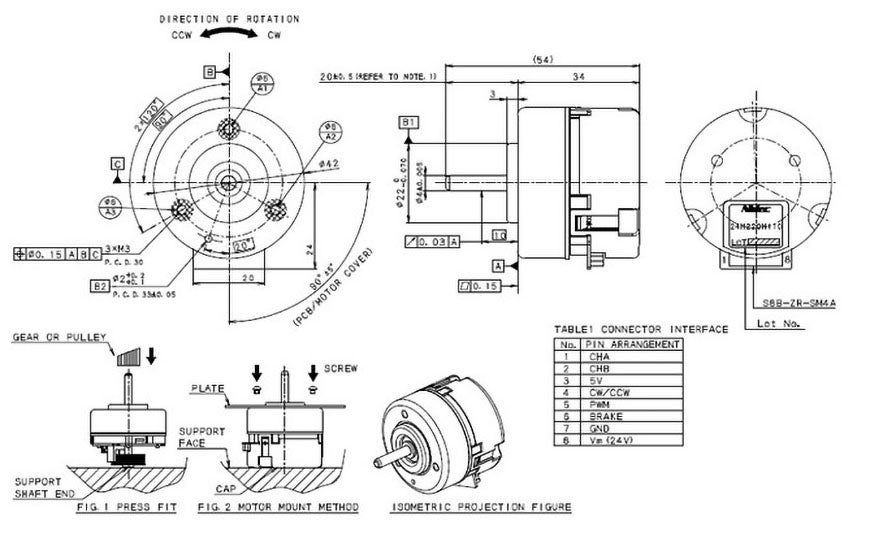

Drawing
